3D Actuators

RIGHT-CLICK SUBMENU

Animation

Right-click → Actuators → Animation

actuator • shared

Animation

3D

Play, stop, or control animations by name.\nAutomatically finds the AnimationPlayer that owns the animation.\nWorks with AnimationPlayers nested at any depth.

Menu Add Logic Brick → Actuators → Animation

Source


           actuators/common/animation_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Play,Stop,Pause,Queue Default: `play`
`animation_name`	Animation Name Choices: __ANIMATION_LIST__
`speed`	Speed Default: `1.0`
`blend_time`	Blend Time Default: `-1.0`
`play_backwards`	Play Backwards Default: `false`
`from_end`	From End Default: `false`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Animation

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

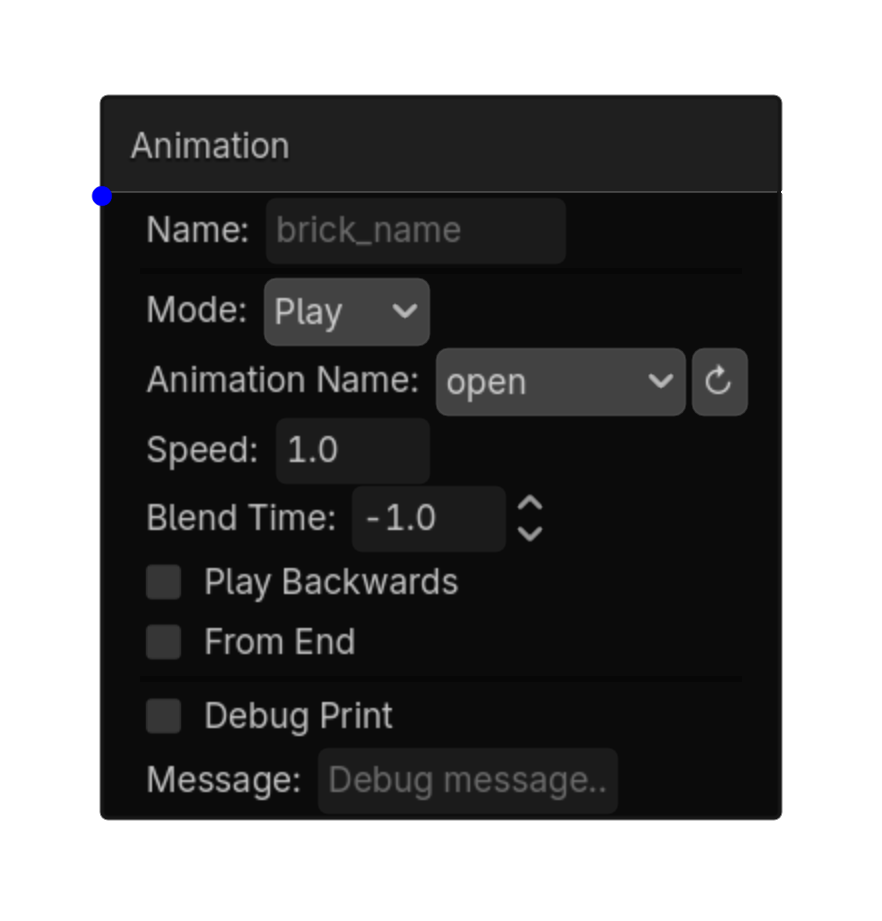

Animation screenshot placeholder — **Animation screenshot**

actuator • 3d

Animation State

3D

Beginner-friendly AnimationTree control. Use Go To State for normal character animations. Blending comes from the transition Xfade Time inside the AnimationTree.

Menu Add Logic Brick → Actuators → Animation

Source


           actuators/3d/animation_tree_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Go To State:go_to_state,Set Blend Parameter:set_parameter,Advanced - Set Condition:set_condition_value Default: `go_to_state`
`animation_tree_name`	Animation Tree Name Default: `AnimationTree`
`state_name`	State Name
`true_condition_name`	True Condition Name Choices: __ANIM_TREE_CONDITION_LIST__
`false_condition_name`	False Condition Name Choices: __ANIM_TREE_CONDITION_LIST__
`condition_name`	Condition Name Choices: __ANIM_TREE_CONDITION_LIST__
`condition_value`	Condition Value Choices: true,false Default: `true`
`parameter_name`	Parameter Name
`param_type`	Param Type Choices: Float,Int,Bool,Vector2 Default: `float`
`param_float`	Param Float Default: `0.0`
`param_int`	Param Int Default: `0`
`param_bool`	Param Bool Default: `true`
`param_x`	Param X Default: `0.0`
`param_y`	Param Y Default: `0.0`
`state_machine_path`	State Machine Path
`parameter_path`	Parameter Path

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Animation State

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

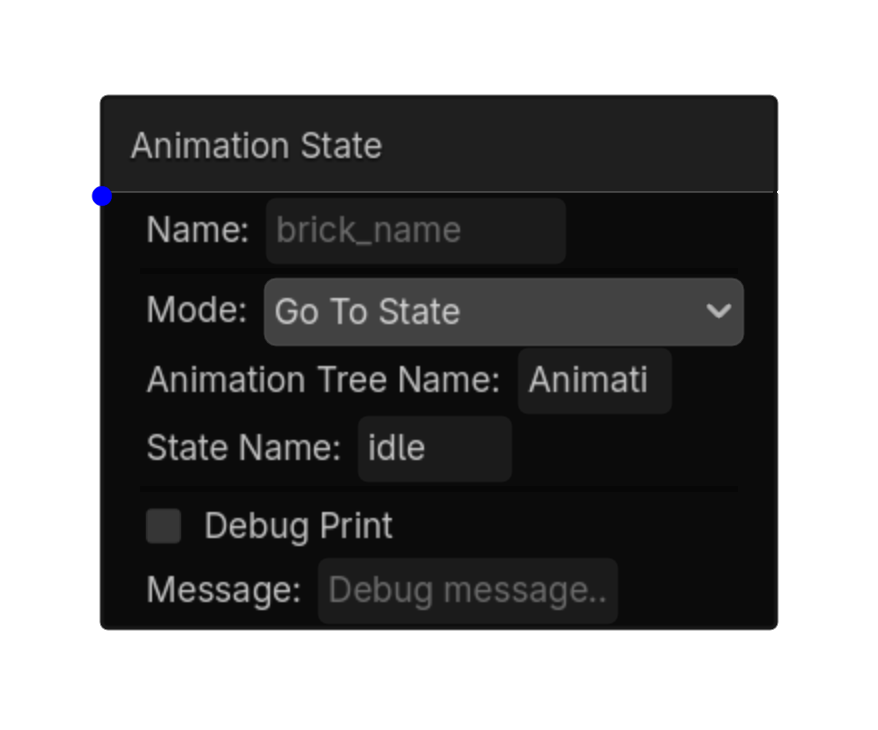

Animation State screenshot placeholder — **Animation State screenshot**

actuator • 3d

Sprite Frames

3D

Play, stop, or pause Sprite3D / AnimatedSprite3D frame animations.\nFinds the target by name anywhere in the scene tree.\nLeave Target Node empty to use the node this script is on.

Menu Add Logic Brick → Actuators → Animation

Source


           actuators/3d/sprite_frames_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Play,Stop,Pause Default: `play`
`animation_name`	Animation Name
`speed_scale`	Speed Scale Default: `1.0`
`loop`	Loop Default: `true`
`target_node`	Target Node

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Sprite Frames

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Sprite Frames screenshot

RIGHT-CLICK SUBMENU

Audio

Right-click → Actuators → Audio

actuator • 3d

3D Audio

3D

Play, stop, pause, and fade 3D or spatial audio from a file.

Menu Add Logic Brick → Actuators → Audio

Source


           actuators/3d/sound_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Play,Stop,Pause,Fade In,Fade Out Default: `play`
`sound_file`	Sound File Choices: .wav,.ogg,*.mp3
`play_mode`	Play Mode Choices: Restart,Overlap,Ignore If Playing Default: `restart`
`volume`	Volume Choices: -80,24,0.1 Default: `0.0`
`pitch`	Pitch Choices: 0.01,4.0,0.01 Default: `1.0`
`pitch_random`	Pitch Random Choices: 0.0,1.0,0.01 Default: `0.0`
`loop`	Loop Default: `false`
`positional`	Positional Default: `false`
`audio_bus`	Audio Bus
`fade_duration`	Fade Duration Choices: 0.1,10.0,0.1 Default: `1.0`
`min_delay`	Min Delay Choices: 0.0,5.0,0.05 Default: `0.0`

Using this brick

Typical uses

Perform the audio action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller 3D Audio

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

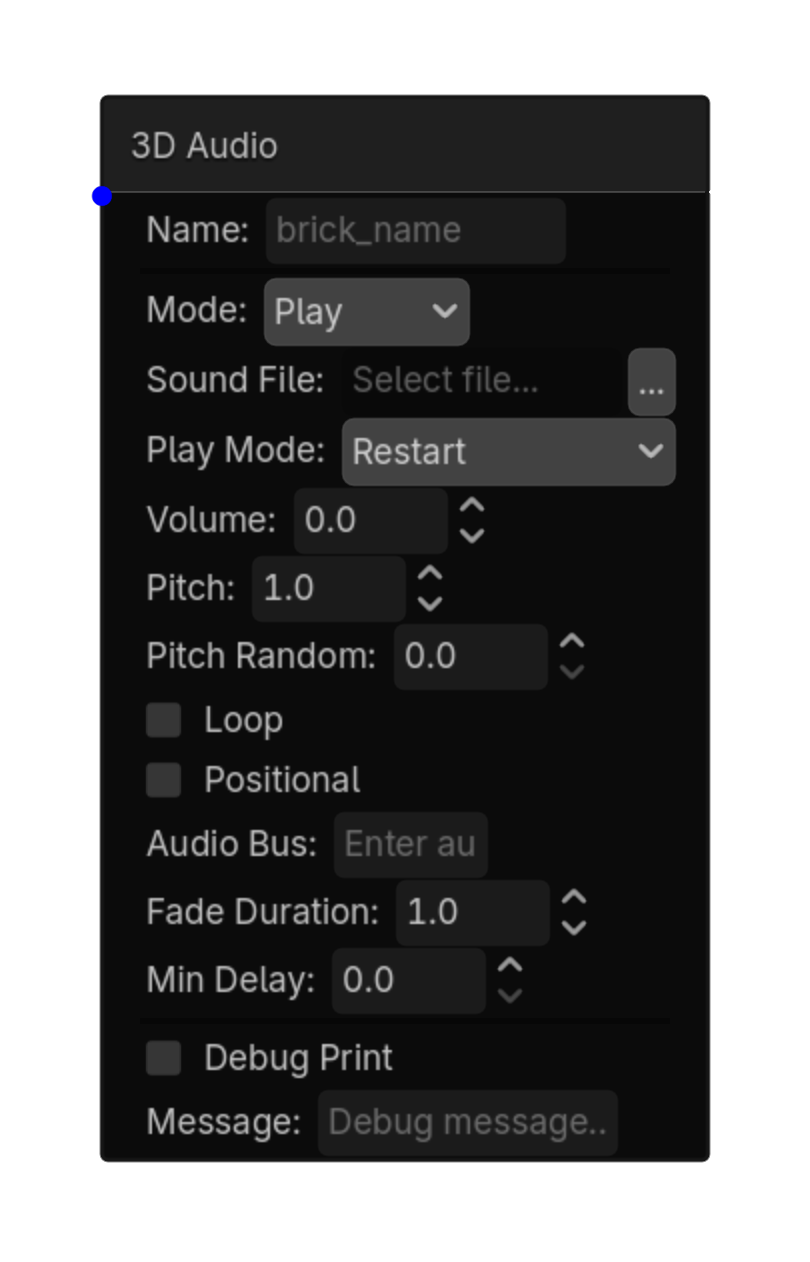

3D Audio screenshot placeholder — **3D Audio screenshot**

actuator • shared

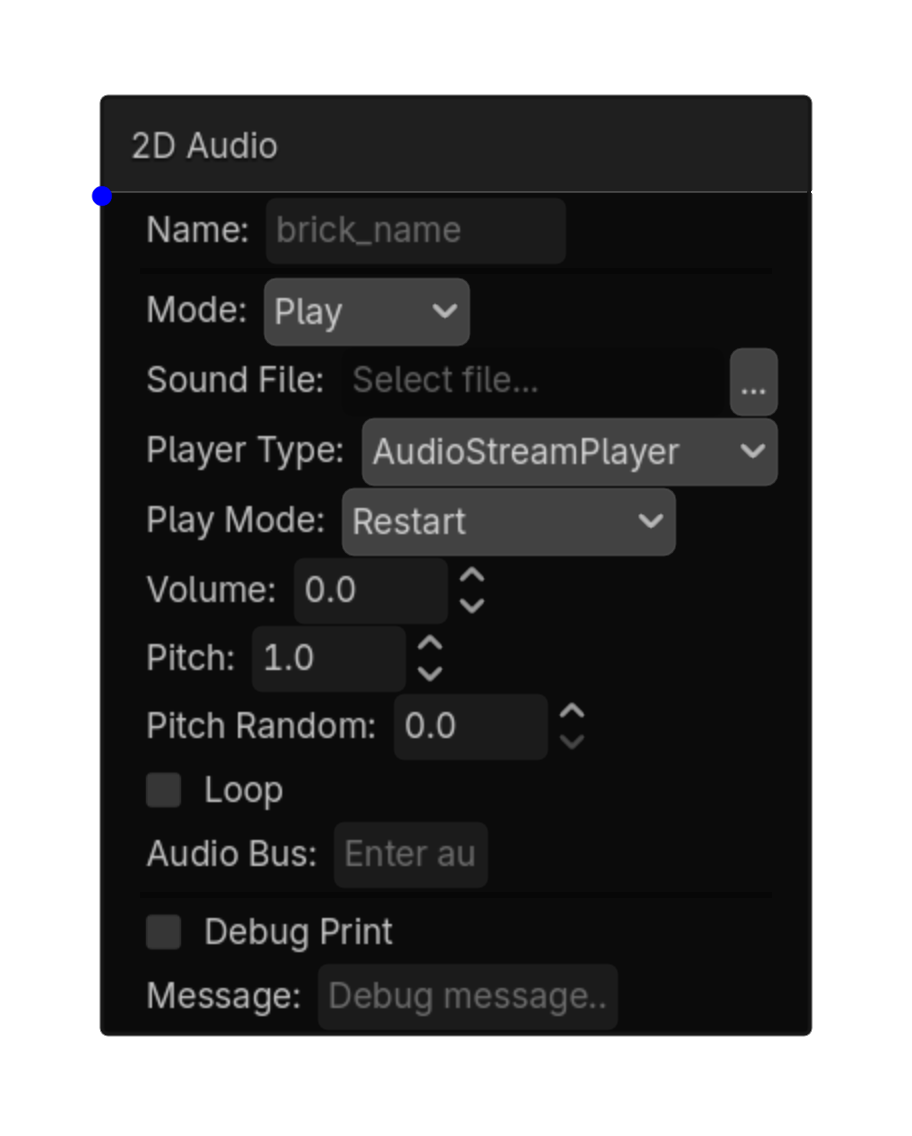

2D Audio

3D

Play 2D or UI audio from a file.

Menu Add Logic Brick → Actuators → Audio

Source


           actuators/common/audio_2d_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Play,Stop,Pause,Fade In,Fade Out Default: `play`
`sound_file`	Sound File Choices: .wav,.ogg,*.mp3
`player_type`	Player Type Choices: AudioStreamPlayer,AudioStreamPlayer2D Default: `stream_player`
`play_mode`	Play Mode Choices: Restart,Overlap,Ignore If Playing Default: `restart`
`volume`	Volume Choices: -80,24,0.1 Default: `0.0`
`pitch`	Pitch Choices: 0.01,4.0,0.01 Default: `1.0`
`pitch_random`	Pitch Random Choices: 0.0,1.0,0.01 Default: `0.0`
`loop`	Loop Default: `false`
`audio_bus`	Audio Bus
`fade_duration`	Fade Duration Choices: 0.1,10.0,0.1 Default: `1.0`

Using this brick

Typical uses

Perform the audio action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller 2D Audio

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

2D Audio screenshot placeholder — **2D Audio screenshot**

actuator • shared

Music

3D

Three modes:\nTracks: define and create music players at startup.\nSet: set which track is current (and optionally play it).\nControl: play, stop, pause, resume, or crossfade from current to another track.

Menu Add Logic Brick → Actuators → Audio

Source


           actuators/common/music_actuator.gd

Options

Property	Details
`music_mode`	Music Mode Choices: Tracks,Set,Control Default: `tracks`
`tracks`	Tracks Default: `[]`
`volume_db`	Volume Db Choices: -80,24,0.1 Default: `0.0`
`loop`	Loop Default: `true`
`audio_bus`	Audio Bus
`persist`	Persist Default: `false`
`set_track`	Set Track Default: `0`
`set_play`	Set Play Default: `true`
`control_action`	Control Action Choices: Play,Stop,Pause,Resume,Crossfade Default: `play`
`to_track`	To Track Default: `1`
`crossfade_time`	Crossfade Time Choices: 0.1,10.0,0.1 Default: `1.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Music

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

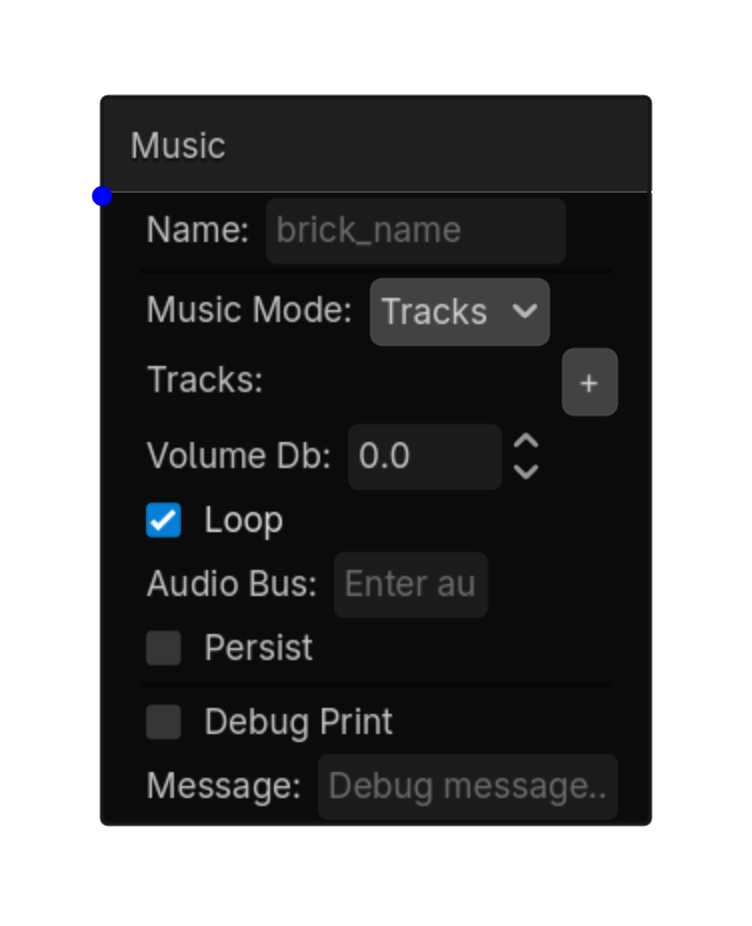

Music screenshot placeholder — **Music screenshot**

RIGHT-CLICK SUBMENU

Camera

Right-click → Actuators → Camera

actuator • 3d

3rd Person Camera

3D

Orbits a Camera3D around the character via a pivot Node3D.\nAssign both the pivot and the camera in the Inspector.\nThe camera can live anywhere in the scene — including inside a SubViewport for split screen.

Menu Add Logic Brick → Actuators → Camera

Source


           actuators/3d/third_person_camera_actuator.gd

Options

Property	Details
`camera_node_name`	Camera Node Name Default: `Camera3D` Camera3D node name
`pivot_node_name`	Pivot Node Name Default: `CameraPivot` Camera pivot Node3D node name
`setup_group`	Setup Group Choices: Setup
`input_mode`	Input Mode Choices: Mouse,Joystick,Both Default: `mouse`
`rotate_character`	Rotate Character Default: `true`
`align_mode`	Align Mode Choices: Instant,Smooth Default: `instant`
`turn_speed`	Turn Speed Choices: 1.0,30.0,0.5 Default: `10.0`
`move_actions`	Move Actions Default: `ui_up`
`capture_mouse`	Capture Mouse Default: `true`
`sensitivity_group`	Sensitivity Group Choices: Sensitivity
`sensitivity_x`	Sensitivity X Choices: 0.01,5.0,0.01 Default: `0.3`
`sensitivity_y`	Sensitivity Y Choices: 0.01,5.0,0.01 Default: `0.3`
`export_sensitivity`	Export Sensitivity Default: `false`
`invert_group`	Invert Group Choices: Invert
`invert_x`	Invert X Default: `false`
`invert_y`	Invert Y Default: `false`
`export_invert`	Export Invert Default: `false`
`pitch_group`	Pitch Group Choices: Vertical Clamp
`pitch_min`	Pitch Min Choices: -90.0,0.0,1.0 Default: `-60.0`
`pitch_max`	Pitch Max Choices: 0.0,90.0,1.0 Default: `30.0`
`joy_group`	Joy Group Choices: Joystick
`joystick_device`	Joystick Device Choices: 0,7,1 Default: `0`
`joy_stick`	Joy Stick Choices: Left Stick,Right Stick Default: `right`
`joy_deadzone`	Joy Deadzone Choices: 0.0,0.9,0.01 Default: `0.15`
`joy_sensitivity`	Joy Sensitivity Choices: 10.0,360.0,5.0 Default: `100.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller 3rd Person Camera

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

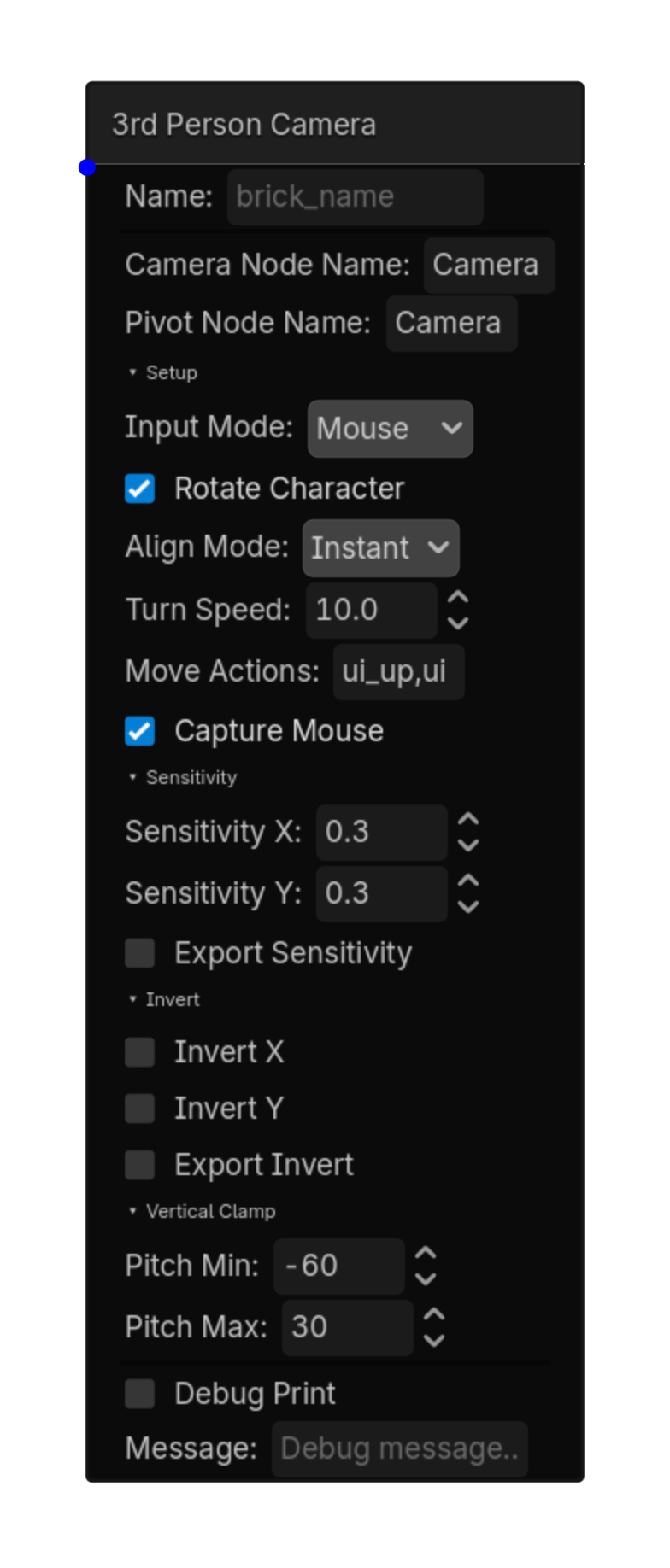

3rd Person Camera screenshot placeholder — **3rd Person Camera screenshot**

actuator • 3d

Camera Zoom

3D

Changes camera FOV (3D) or zoom (2D).\nDrag your camera into the inspector slot.

Menu Add Logic Brick → Actuators → Camera

Source


           actuators/3d/camera_zoom_actuator.gd

Options

Property	Details
`camera_node_name`	Camera Node Name Default: `Camera3D` Camera3D or Camera2D node name
`camera_type`	Camera Type Choices: Camera 3D,Camera 2D Default: `camera_3d`
`fov`	Fov Default: `75.0`
`zoom`	Zoom Default: `1.0`
`transition`	Transition Default: `true`
`transition_speed`	Transition Speed Default: `3.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Camera Zoom

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

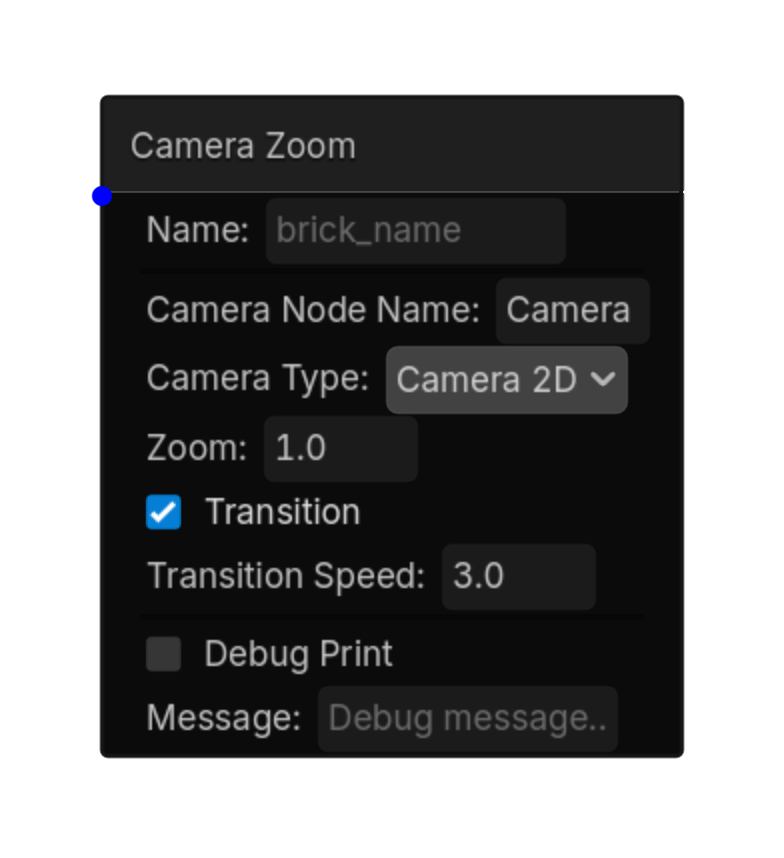

Camera Zoom screenshot placeholder — **Camera Zoom screenshot**

actuator • 3d

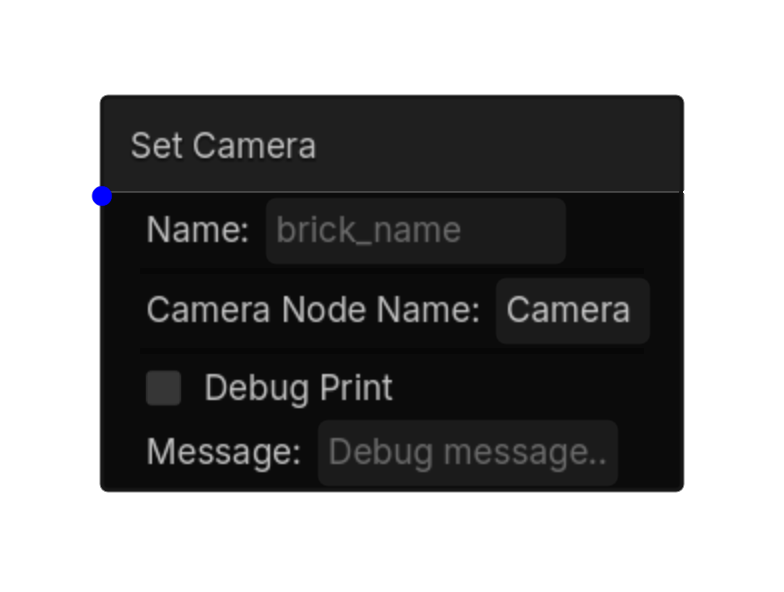

Set Camera

3D

Makes the assigned Camera3D the active camera.\nUse a one-shot sensor (e.g. Delay or a state transition) to avoid\ncalling make_current() every frame unnecessarily.\n\n⚠ Adds an @export in the Inspector — assign your Camera3D there.

Menu Add Logic Brick → Actuators → Camera

Source


           actuators/3d/set_camera_actuator.gd

Options

Property	Details
`camera_node_name`	Camera Node Name Default: `Camera3D` Camera3D node name

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Set Camera

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Set Camera screenshot placeholder — **Set Camera screenshot**

actuator • 3d

Smooth Follow Camera

3D

Smoothly follows this node with the assigned Camera3D,\nmaintaining the camera's initial offset from the target.\n\nPosition follow: camera tracks the node's position per axis.\nRotation follow: camera orbits the node, keeping it in frame.\nDead zone: camera only moves once the node exceeds the threshold.\n\n⚠ Adds an @export in the Inspector — assign your Camera3D there.

Menu Add Logic Brick → Actuators → Camera

Source


           actuators/3d/smooth_follow_camera_actuator.gd

Options

Property	Details
`camera_node_name`	Camera Node Name Default: `Camera3D` Camera3D node name
`follow_speed`	Follow Speed Default: `5.0`
`dead_zone_x`	Dead Zone X Default: `0.0`
`dead_zone_y`	Dead Zone Y Default: `0.0`
`dead_zone_z`	Dead Zone Z Default: `0.0`
`follow_pos_x`	Follow Pos X Default: `true`
`follow_pos_y`	Follow Pos Y Default: `true`
`follow_pos_z`	Follow Pos Z Default: `true`
`rotation_source_node_name`	Rotation Source Node Name Rotation source node name (blank = self)
`follow_rot_x`	Follow Rot X Default: `false`
`follow_rot_y`	Follow Rot Y Default: `false`
`follow_rot_z`	Follow Rot Z Default: `false`
`rotation_speed`	Rotation Speed Default: `5.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Smooth Follow Camera

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

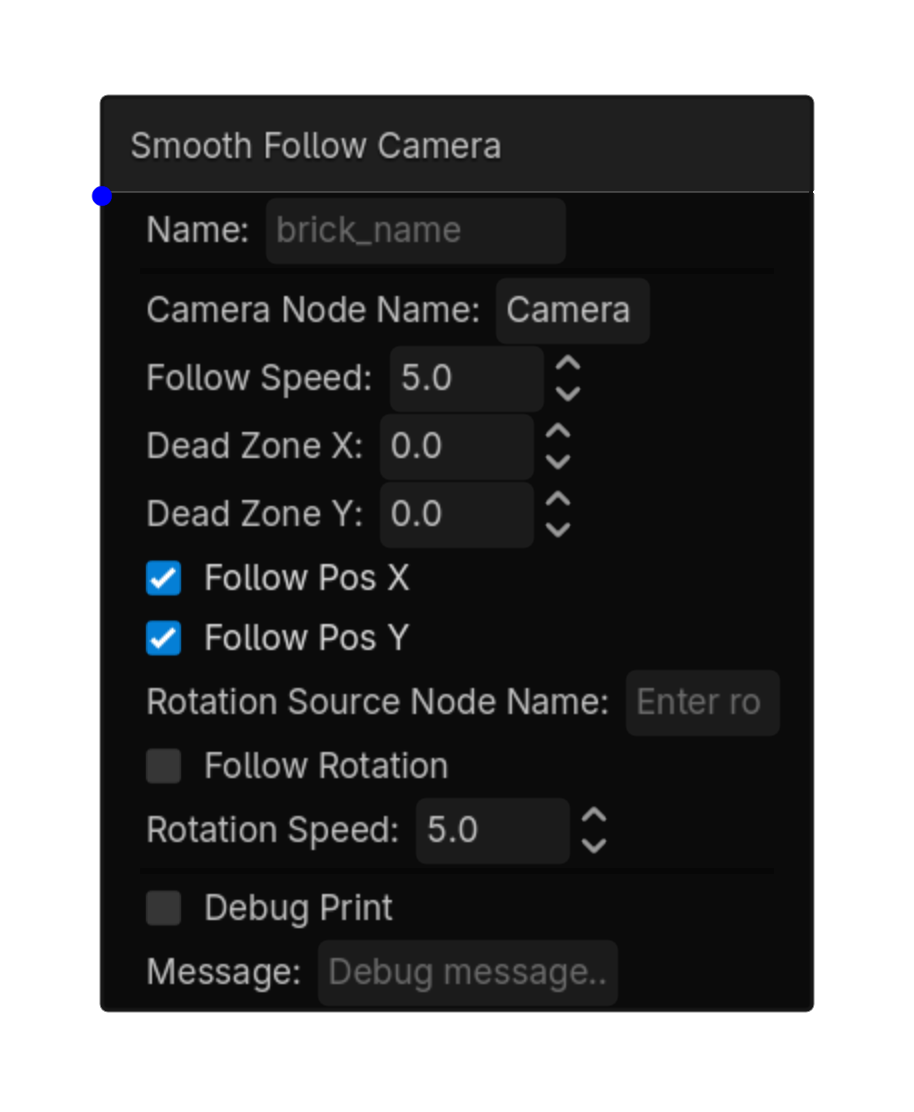

Smooth Follow Camera screenshot placeholder — **Smooth Follow Camera screenshot**

actuator • 3d

Split Screen

3D

Creates a split screen layout.\nApply Code always builds all 4 SubViewportContainers.\nEach player count has its own independent layout.\nChange split_screen_players at runtime to switch counts\nwithout re-applying code.\n** Use an Always sensor so the layout updates every frame.

Menu Add Logic Brick → Actuators → Camera

Source


           actuators/3d/split_screen_actuator.gd

Options

Property	Details
`camera_1_node_name`	Camera 1 Node Name Default: `Camera3D` Player 1 Camera3D node name
`camera_2_node_name`	Camera 2 Node Name Default: `Camera3D2` Player 2 Camera3D node name
`camera_3_node_name`	Camera 3 Node Name Default: `Camera3D3` Player 3 Camera3D node name
`camera_4_node_name`	Camera 4 Node Name Default: `Camera3D4` Player 4 Camera3D node name
`player_count`	Player Count Default: `2` 2 or player_count
`layout_2`	Layout 2 Default: `vertical`
`layout_3`	Layout 3 Default: `top_wide`
`layout_4`	Layout 4 Default: `grid_2x2`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Split Screen

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

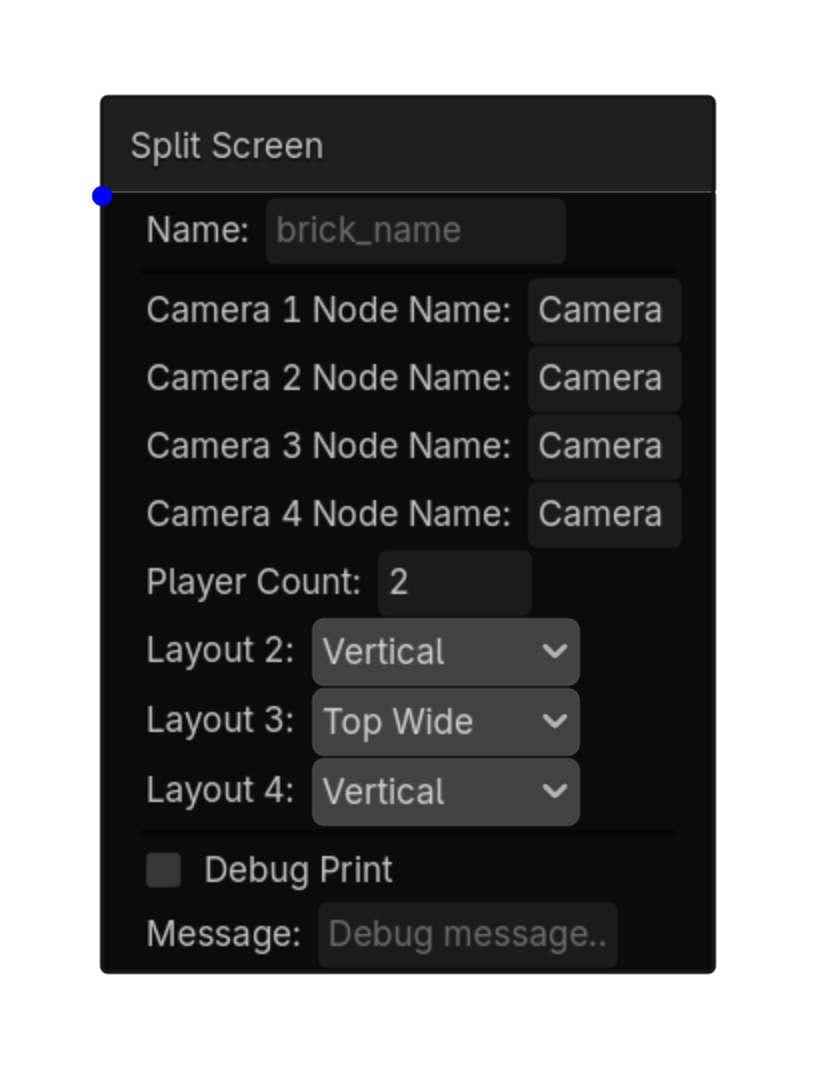

Split Screen screenshot placeholder — **Split Screen screenshot**

RIGHT-CLICK SUBMENU

Environment

Right-click → Actuators → Environment

actuator • 3d

Environment

3D

Modifies WorldEnvironment properties at runtime.\nDrag your WorldEnvironment node into the inspector slot.\nAll value fields accept a number or a variable name / expression.

Menu Add Logic Brick → Actuators → Environment

Source


           actuators/3d/environment_actuator.gd

Options

Property	Details
`environment_node_name`	Environment Node Name Default: `WorldEnvironment` WorldEnvironment node name
`_group_fog`	Group Fog Choices: Fog
`fog_enabled`	Fog Enabled Default: `false`
`fog_density`	Fog Density Default: `0.01`
`fog_light_color`	Fog Light Color Default: `Color(0.518`
`fog_light_energy`	Fog Light Energy Default: `1.0`
`fog_sun_scatter`	Fog Sun Scatter Default: `0.0`
`fog_height`	Fog Height Default: `0.0`
`fog_height_density`	Fog Height Density Default: `0.0`
`fog_aerial_perspective`	Fog Aerial Perspective Default: `0.0`
`fog_sky_affect`	Fog Sky Affect Default: `1.0`
`_group_glow`	Group Glow Choices: Glow
`glow_enabled`	Glow Enabled Default: `false`
`glow_level_1`	Glow Level 1 Default: `0.0`
`glow_level_2`	Glow Level 2 Default: `0.0`
`glow_level_3`	Glow Level 3 Default: `1.0`
`glow_level_4`	Glow Level 4 Default: `0.0`
`glow_level_5`	Glow Level 5 Default: `1.0`
`glow_level_6`	Glow Level 6 Default: `0.0`
`glow_level_7`	Glow Level 7 Default: `0.0`
`glow_normalized`	Glow Normalized Default: `false`
`glow_intensity`	Glow Intensity Default: `0.8`
`glow_strength`	Glow Strength Default: `1.0`
`glow_mix`	Glow Mix Default: `0.05`
`glow_bloom`	Glow Bloom Default: `0.0`
`glow_blend_mode`	Glow Blend Mode Choices: Additive,Screen,Softlight,Replace,Mix Default: `2`
`glow_hdr_luminance_cap`	Glow Hdr Luminance Cap Default: `12.0`
`glow_hdr_threshold`	Glow Hdr Threshold Default: `1.0`
`glow_hdr_scale`	Glow Hdr Scale Default: `2.0`
`glow_map_strength`	Glow Map Strength Default: `0.8`
`_group_ssao`	Group Ssao Choices: SSAO
`ssao_enabled`	Ssao Enabled Default: `false`
`ssao_radius`	Ssao Radius Default: `1.0`
`ssao_intensity`	Ssao Intensity Default: `2.0`
`ssao_power`	Ssao Power Default: `1.5`
`ssao_detail`	Ssao Detail Default: `0.5`
`ssao_horizon`	Ssao Horizon Default: `0.06`
`ssao_sharpness`	Ssao Sharpness Default: `0.98`
`ssao_light_affect`	Ssao Light Affect Default: `0.0`
`_group_ssil`	Group Ssil Choices: SSIL
`ssil_enabled`	Ssil Enabled Default: `false`
`ssil_radius`	Ssil Radius Default: `5.0`
`ssil_intensity`	Ssil Intensity Default: `1.0`
`ssil_sharpness`	Ssil Sharpness Default: `0.98`
`ssil_normal_rejection`	Ssil Normal Rejection Default: `1.0`
`_group_tonemap`	Group Tonemap Choices: Tone Mapping
`tonemap_mode`	Tonemap Mode Choices: Linear,Reinhardt,Filmic,ACES Default: `0`
`tonemap_exposure`	Tonemap Exposure Default: `1.0`
`tonemap_white`	Tonemap White Default: `1.0`
`_group_adjustment`	Group Adjustment Choices: Color Correction
`adjustment_enabled`	Adjustment Enabled Default: `false`
`adjustment_brightness`	Adjustment Brightness Default: `1.0`
`adjustment_contrast`	Adjustment Contrast Default: `1.0`
`adjustment_saturation`	Adjustment Saturation Default: `1.0`
`_group_transition`	Group Transition Choices: Transition
`transition`	Transition Default: `false`
`transition_speed`	Transition Speed Default: `1.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Environment

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

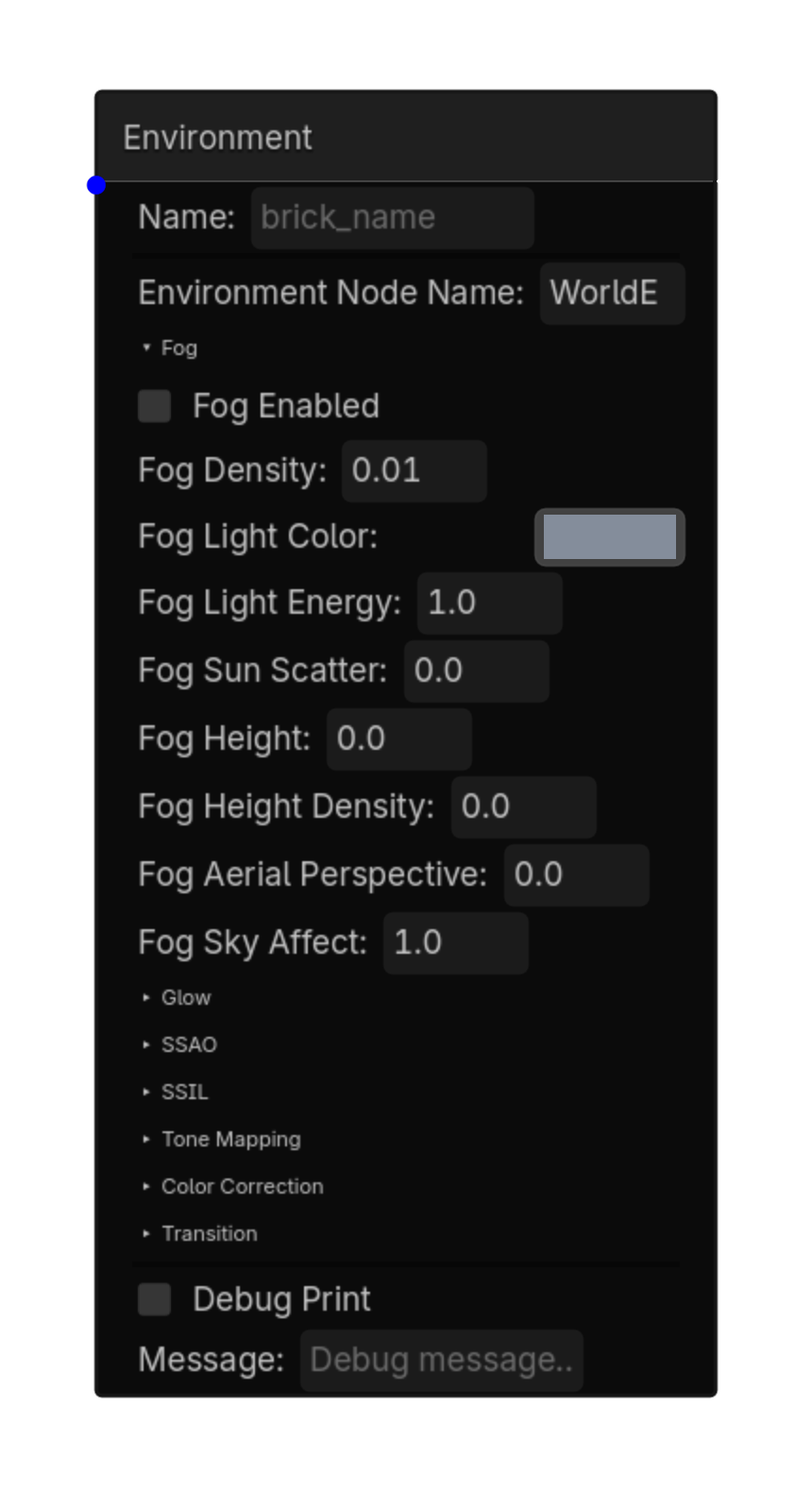

Environment screenshot placeholder — **Environment screenshot**

actuator • 3d

Light

3D

Control a light node's properties and apply animated FX effects.\nSelect the light type to expose its specific properties.

Menu Add Logic Brick → Actuators → Environment

Source


           actuators/3d/light_actuator.gd

Options

Property	Details
`light_type_group`	Light Type Group Choices: Light Type
`light_type`	Light Type Choices: OmniLight3D,SpotLight3D,DirectionalLight3D Default: `omni`
`common_group`	Common Group Choices: Properties
`set_color`	Set Color Default: `false`
`color`	Color Default: `Color(1`
`set_energy`	Set Energy Default: `false`
`energy`	Energy Choices: 0.0,16.0,0.01 Default: `1.0`
`set_indirect_energy`	Set Indirect Energy Default: `false`
`indirect_energy`	Indirect Energy Choices: 0.0,16.0,0.01 Default: `1.0`
`set_specular`	Set Specular Default: `false`
`specular`	Specular Choices: 0.0,1.0,0.01 Default: `0.5`
`set_shadow`	Set Shadow Default: `false`
`shadow_enabled`	Shadow Enabled Default: `false`
`set_visible`	Set Visible Default: `false`
`light_visible`	Light Visible Default: `true`
`set_range`	Set Range Default: `false`
`light_range`	Light Range Choices: 0.0,100.0,0.1 Default: `10.0`
`set_spot_angle`	Set Spot Angle Default: `false`
`spot_angle`	Spot Angle Choices: 0.1,90.0,0.1 Default: `45.0`
`set_spot_attenuation`	Set Spot Attenuation Default: `false`
`spot_attenuation`	Spot Attenuation Choices: 0.0,8.0,0.01 Default: `1.0`
`fx_group`	Fx Group Choices: FX
`fx`	Fx Choices: Normal,Flicker,Strobe,Pulse,Fade In,Fade Out Default: `normal`
`fx_params_group`	Fx Params Group Choices: FX Parameters
`flicker_normal_energy`	Flicker Normal Energy Choices: 0.0,16.0,0.01 Default: `1.0`
`flicker_min`	Flicker Min Choices: 0.0,16.0,0.01 Default: `0.0`
`flicker_max`	Flicker Max Choices: 0.0,16.0,0.01 Default: `0.8`
`flicker_idle_min`	Flicker Idle Min Choices: 0.0,30.0,0.1 Default: `1.0`
`flicker_idle_max`	Flicker Idle Max Choices: 0.0,30.0,0.1 Default: `4.0`
`flicker_burst_duration`	Flicker Burst Duration Choices: 0.05,5.0,0.05 Default: `0.3`
`strobe_frequency`	Strobe Frequency Choices: 0.1,60.0,0.1 Default: `10.0`
`strobe_on_energy`	Strobe On Energy Choices: 0.0,16.0,0.01 Default: `1.0`
`strobe_off_energy`	Strobe Off Energy Choices: 0.0,16.0,0.01 Default: `0.0`
`pulse_min`	Pulse Min Choices: 0.0,16.0,0.01 Default: `0.2`
`pulse_max`	Pulse Max Choices: 0.0,16.0,0.01 Default: `1.0`
`pulse_speed`	Pulse Speed Choices: 0.1,20.0,0.1 Default: `2.0`
`fade_target`	Fade Target Choices: 0.0,16.0,0.01 Default: `1.0`
`fade_speed`	Fade Speed Choices: 0.1,20.0,0.1 Default: `2.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Light

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

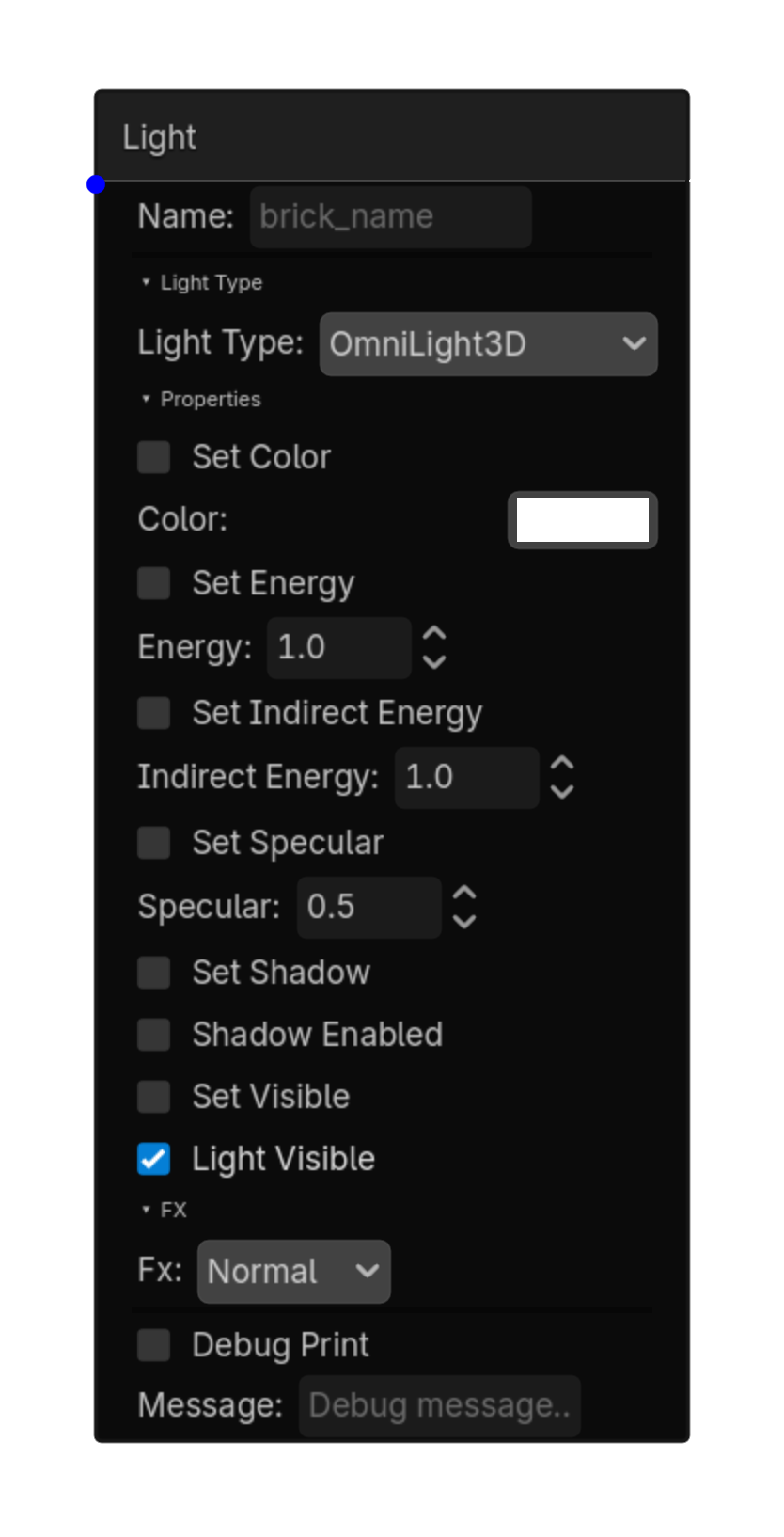

Light screenshot placeholder — **Light screenshot**

RIGHT-CLICK SUBMENU

Game

Right-click → Actuators → Game

actuator • shared

Game

3D

Exit, restart, pause, and screenshot functionality

Menu Add Logic Brick → Actuators → Game

Source


           actuators/common/game_actuator.gd

Options

Property	Details
`action`	Action Choices: Exit,Reload Scene,Pause,Screenshot Default: `exit`
`screenshot_path`	Screenshot Path Default: `user://screenshot.png`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Game

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

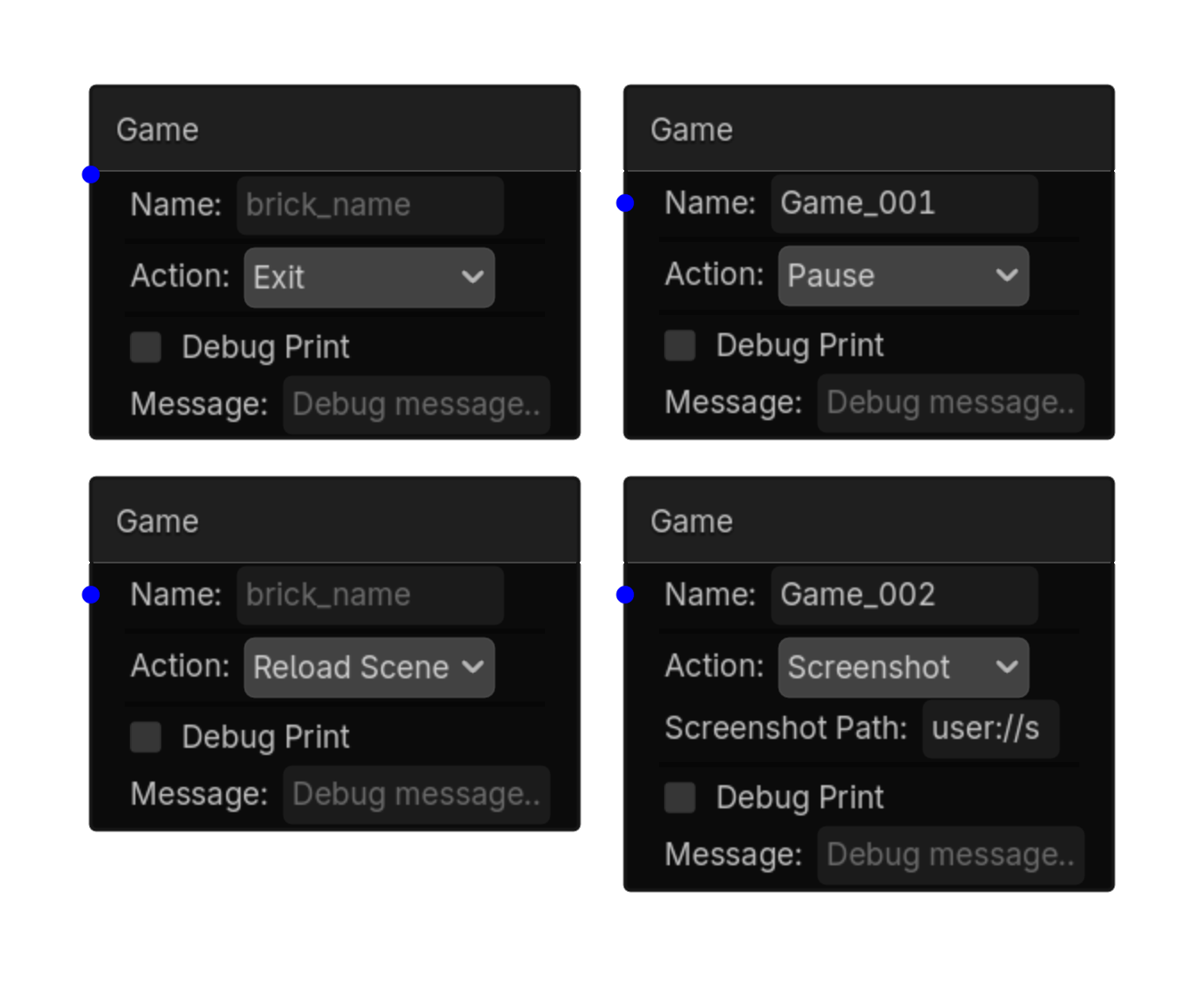

Game screenshot placeholder — **Game screenshot**

actuator • shared

Preload

3D

Preloads resources (materials, scenes, textures, audio, meshes) into memory before they are needed, preventing runtime hitches and frame drops.

Menu Add Logic Brick → Actuators → Game

Source


           actuators/common/preload_actuator.gd

Options

Property	Details
`load_mode`	Load Mode Choices: Background (Threaded),Immediate (Blocking) Default: `background`
`resource_type`	Resource Type Choices: Any,Scene,Material,Texture,AudioStream,Mesh,Shader Default: `Any`
`resources`	Resources Default: `[]`
`on_complete_signal`	On Complete Signal Default: `true`
`signal_group`	Signal Group
`signal_message`	Signal Message Default: `preload_done`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Preload

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

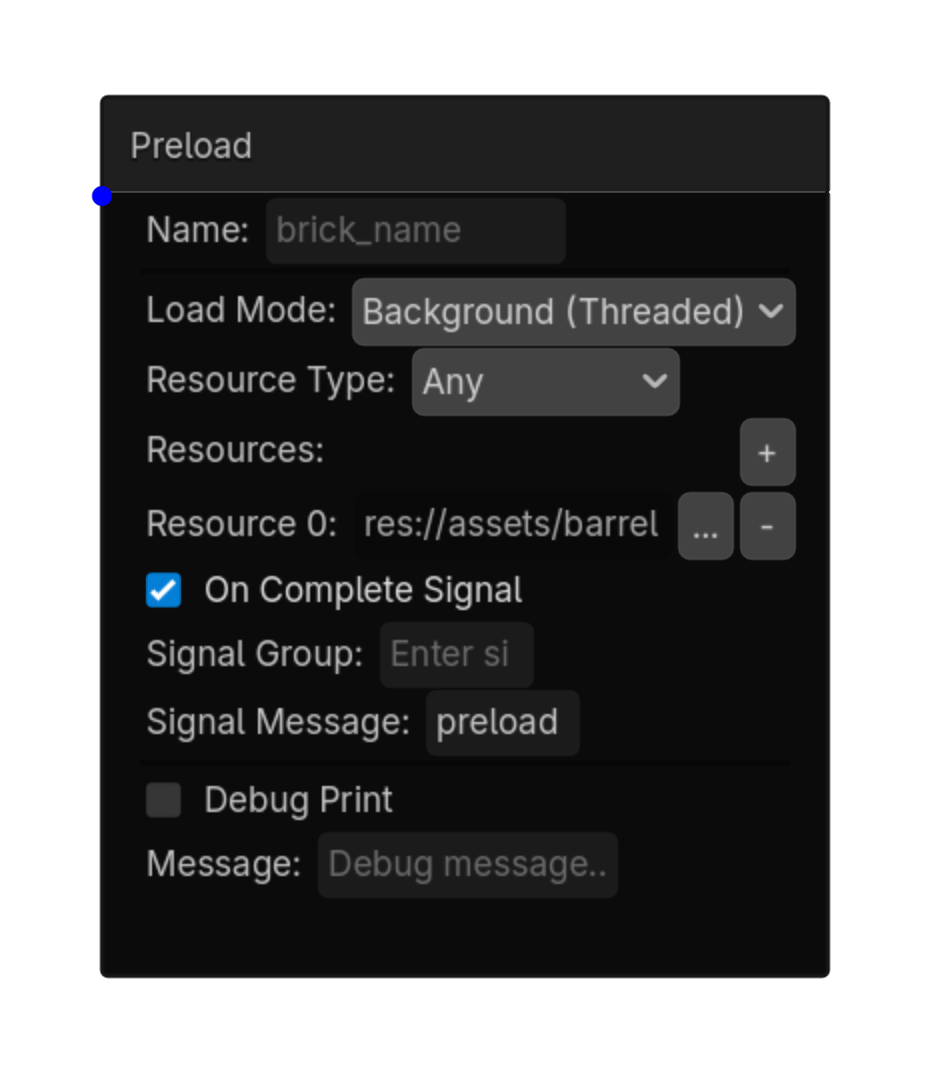

Preload screenshot placeholder — **Preload screenshot**

actuator • 3d

Save / Load

3D

Three scopes: This Node — saves position, rotation, and variables for the node this brick is on Target Node — saves position, rotation, and variables for a specific named node Group — saves position, rotation, and variables for every node in a named group No custom save()/load() methods required on any node. Pair with an InputMap Sensor or Collision Sensor to trigger

Menu Add Logic Brick → Actuators → Game

Source


           actuators/3d/save_load_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Save,Load Default: `save`
`scope`	Scope Choices: This Node,Target Node,Group Default: `this_node`
`target`	Target Node name or group name
`slot`	Slot Default: `slot1`
`save_path`	Save Path e.g. user://saves/mysave.json
`save_position`	Save Position Default: `true`
`save_rotation`	Save Rotation Default: `true`
`save_variables`	Save Variables Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Save / Load

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

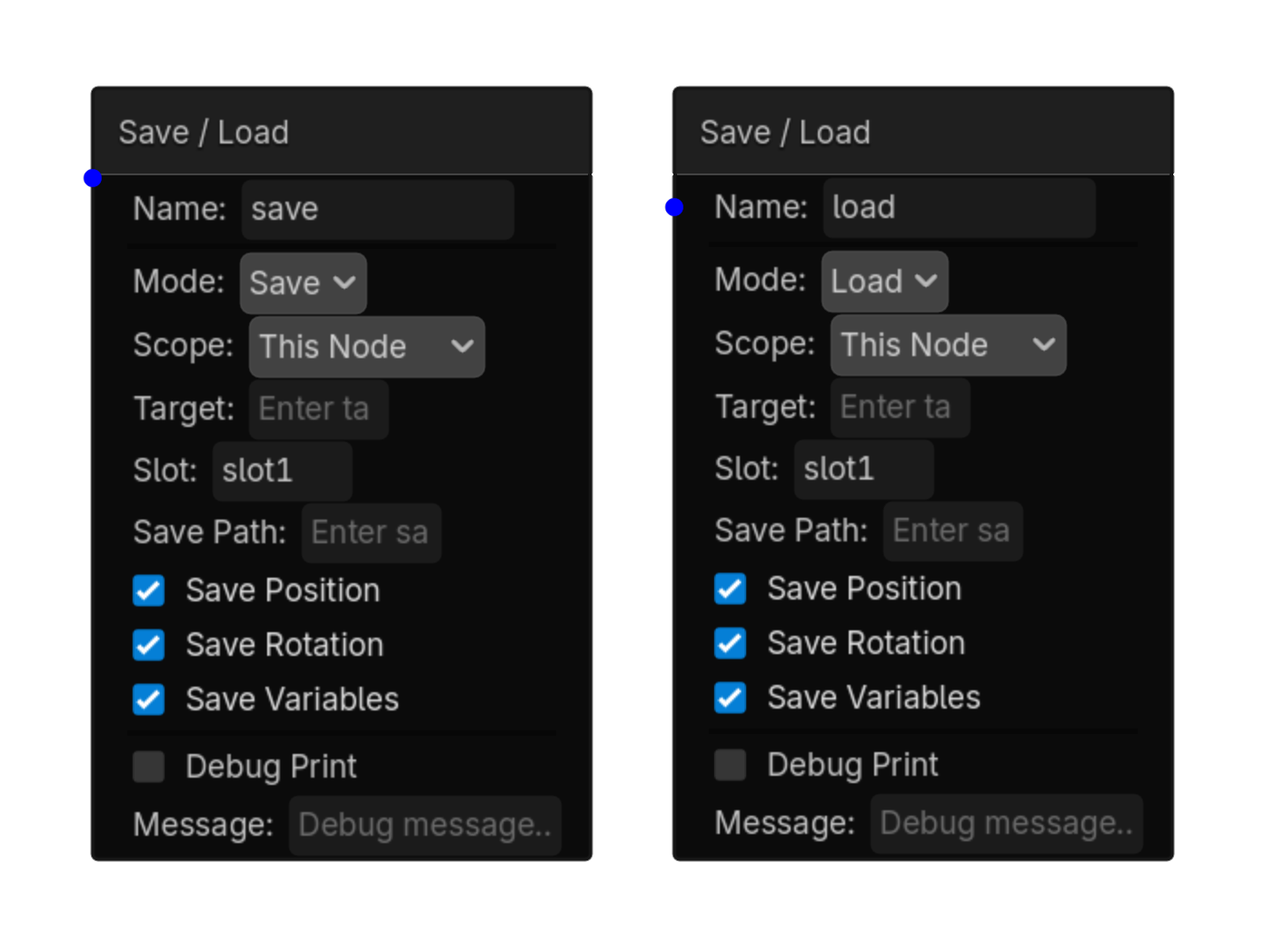

Save / Load screenshot placeholder — **Save / Load screenshot**

actuator • shared

Scene

3D

Similar to UPBGE's Scene actuator

Menu Add Logic Brick → Actuators → Game

Source


           actuators/common/scene_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Restart,Set Scene Default: `restart`
`scene_path`	Scene Path Choices: .tscn,.scn

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Scene

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

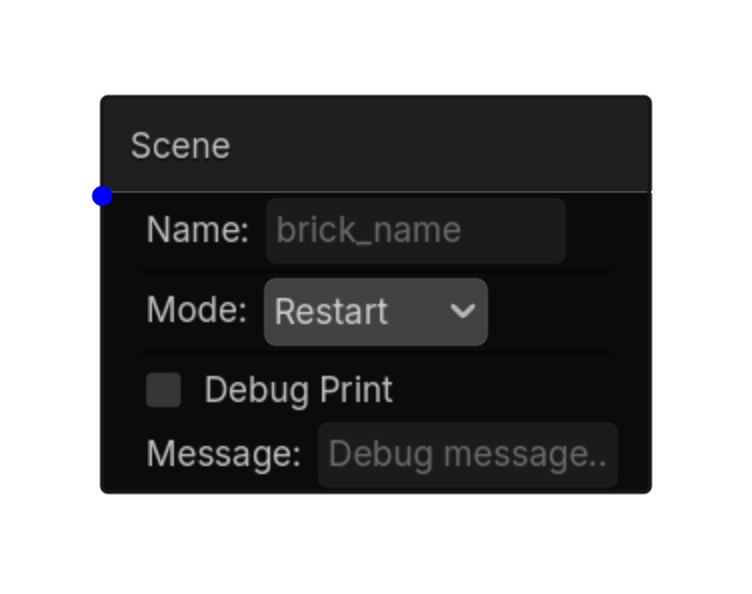

Scene screenshot placeholder — **Scene screenshot**

RIGHT-CLICK SUBMENU

Game Feel

Right-click → Actuators → Game Feel

actuator • shared

Hit Stop

3D

Briefly pauses or slows game time when an impact lands.\nUse for attacks, damage, blocks, heavy landings, and breaks.\nThis is also called hit pause or impact freeze.

Menu Add Logic Brick → Actuators → Game Feel

Source


           actuators/common/hit_stop_actuator.gd

Options

Property	Details
`preset`	Preset Choices: Tiny,Light,Medium,Heavy,Custom Default: `medium`
`duration`	Duration Default: `0.06`
`time_scale`	Time Scale Default: `0.0`
`restart_if_active`	Restart If Active Default: `false`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Hit Stop

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

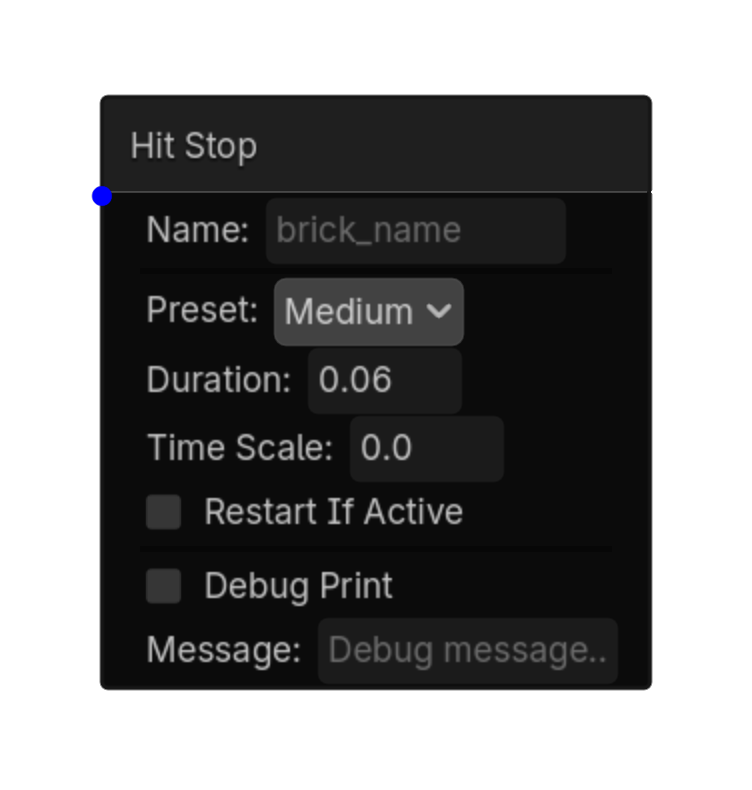

Hit Stop screenshot placeholder — **Hit Stop screenshot**

actuator • 3d

Object Flash

3D

Flashes a mesh/object with a temporary color overlay.\nType a node name, not a path.\n\

Menu Add Logic Brick → Actuators → Game Feel

Source


           actuators/3d/object_flash_actuator.gd

Options

Property	Details
`object_node_name`	Object Node Name Default: `self`
`color`	Color Default: `Color(1`
`effect`	Effect Choices: Single Flash,Strobe,Color Strobe Default: `single_flash`
`speed`	Speed Default: `0.08`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Object Flash

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

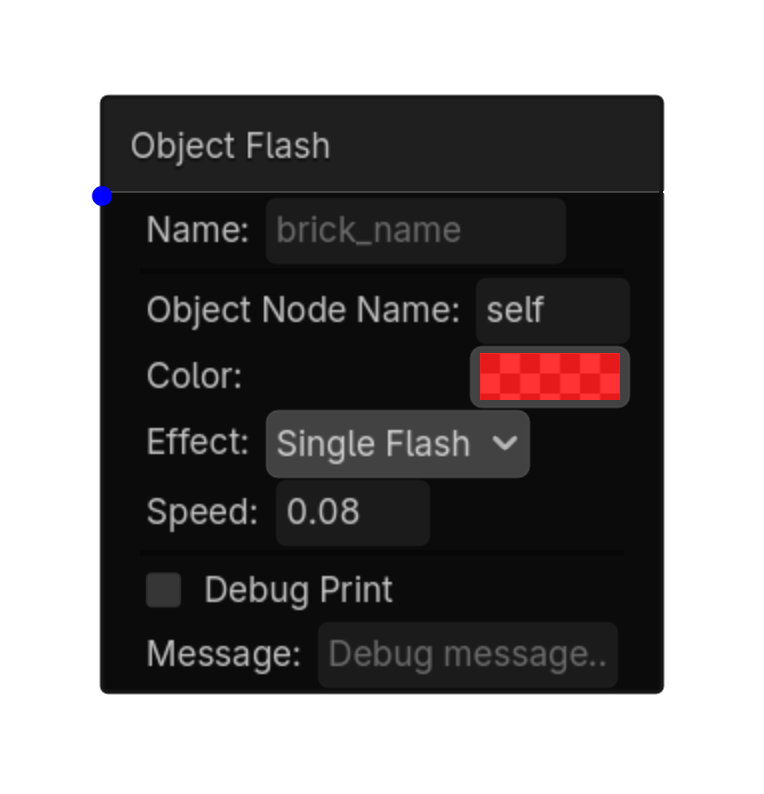

Object Flash screenshot placeholder — **Object Flash screenshot**

actuator • 3d

Object Shake

3D

Shakes a named object by rotation, translation, or scale, then returns it to its starting value.\nType a node name, not a path. Use multiple Object Shake actuators for multiple effects.

Menu Add Logic Brick → Actuators → Game Feel

Source


           actuators/3d/object_shake_actuator.gd

Options

Property	Details
`shake_type`	Shake Type Choices: Rotate,Translate,Scale Default: `rotate`
`object_node_name`	Object Node Name Default: `self`
`preset`	Preset Choices: Tiny,Light,Medium,Heavy,Side Hit,Vertical Hit,Scale Pop Default: `medium`
`x`	X Default: `0.0`
`y`	Y Default: `8.0`
`z`	Z Default: `0.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Object Shake

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

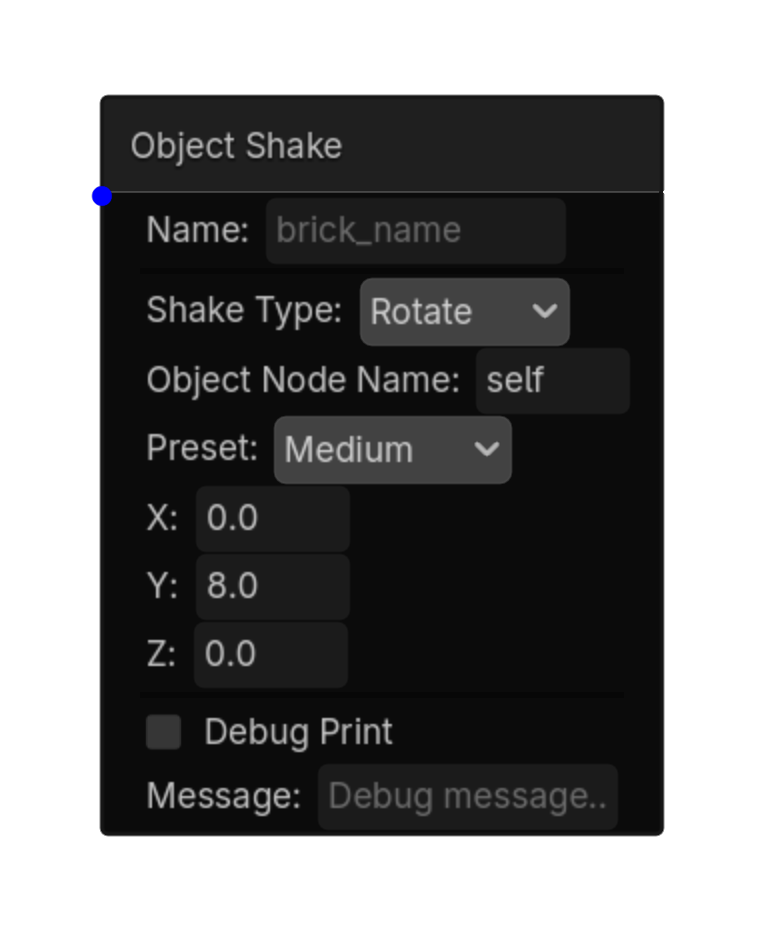

Object Shake screenshot placeholder — **Object Shake screenshot**

actuator • shared

Rumble

3D

Trigger controller haptic vibration.\nVibrate: manual motor control for a set duration.\nStop: immediately stop all vibration.\nPattern: built-in presets that play to completion.\nThe sensor only needs to fire once — the pattern finishes even if the sensor stops.

Menu Add Logic Brick → Actuators → Game Feel

Source


           actuators/common/rumble_actuator.gd

Options

Property	Details
`action`	Action Choices: Vibrate,Stop,Pattern Default: `pattern`
`weak_motor`	Weak Motor Choices: 0.0,1.0 Default: `0.5`
`strong_motor`	Strong Motor Choices: 0.0,1.0 Default: `0.5`
`duration`	Duration Default: `0.5`
`pattern`	Pattern Choices: Single Pulse,Double Pulse,Sustained,Ramp Up,Ramp Down,Heartbeat Default: `single_pulse`
`intensity`	Intensity Choices: 0.0,1.0 Default: `1.0`
`device`	Device Default: `0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Rumble

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

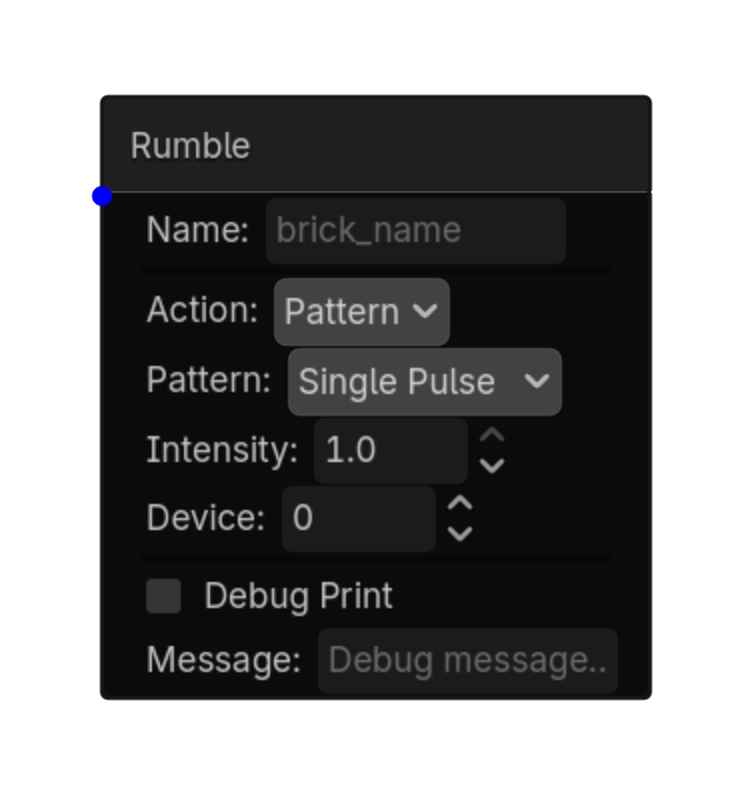

Rumble screenshot placeholder — **Rumble screenshot**

actuator • shared

Screen Flash

3D

Flashes a color over the screen.\nPress \

Menu Add Logic Brick → Actuators → Game Feel

Source


           actuators/common/screen_flash_actuator.gd

Options

Property	Details
`color`	Color Default: `Color(1`
`duration`	Duration Default: `0.3`
`fade_in`	Fade In Default: `0.05`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Screen Flash

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

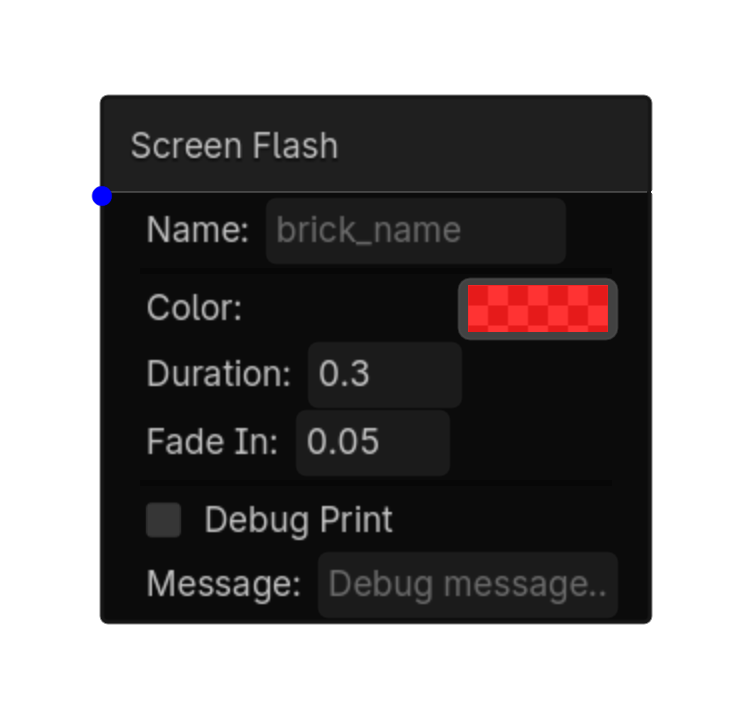

Screen Flash screenshot placeholder — **Screen Flash screenshot**

actuator • 3d

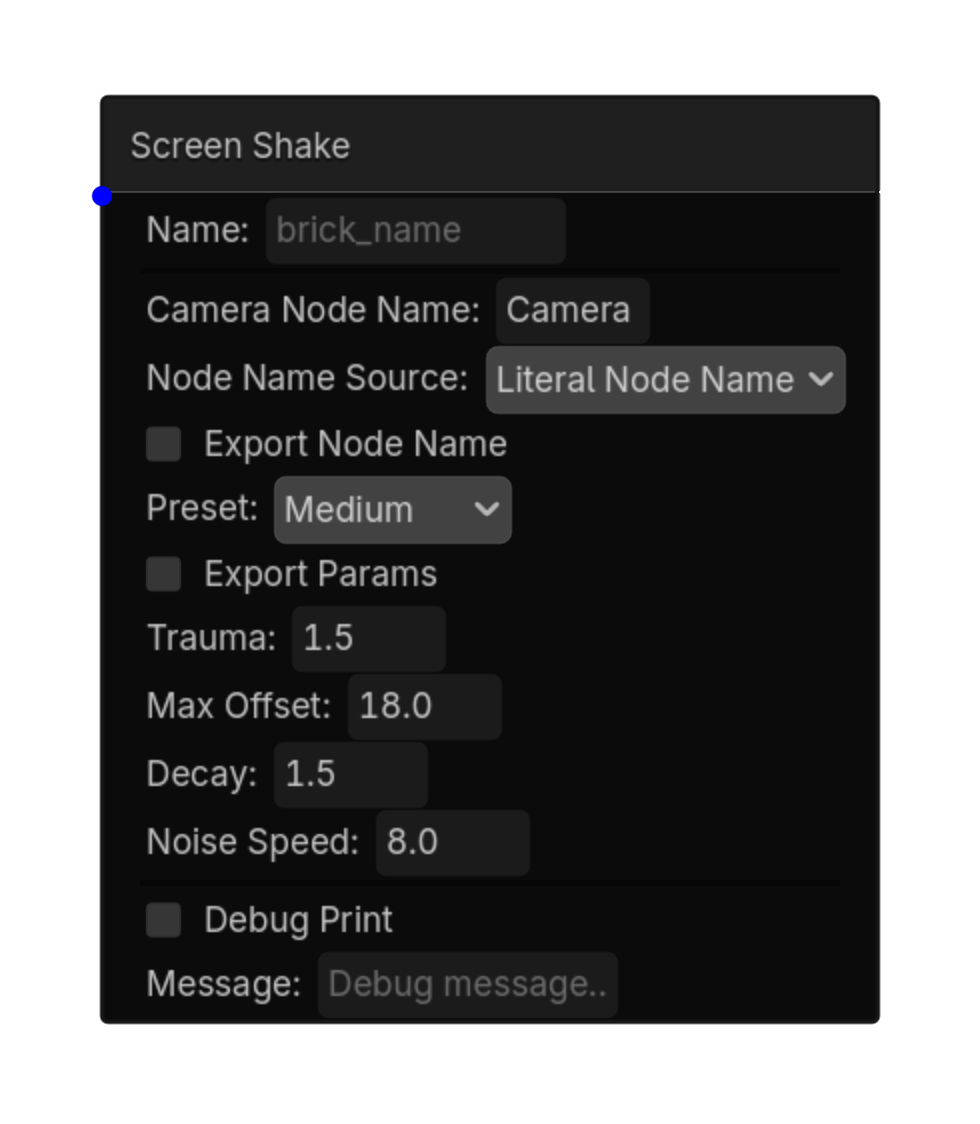

Screen Shake

3D

Trauma-based camera shake.\nType the Camera3D node name. The generated script searches the whole current scene tree, so this brick can live on any 3D node.

Menu Add Logic Brick → Actuators → Game Feel

Source


           actuators/3d/screen_shake_actuator.gd

Options

Property	Details
`camera_node_name`	Camera Node Name Default: `Camera3D`
`node_name_source`	Node Name Source Choices: Literal Node Name,String Variable Default: `literal`
`export_node_name`	Export Node Name Default: `false`
`preset`	Preset Choices: Light,Medium,Heavy,Explosion,Subtle Idle Default: `medium`
`export_params`	Export Params Default: `false`
`trauma`	Trauma Default: `1.5`
`max_offset`	Max Offset Default: `18.0`
`decay`	Decay Default: `1.5`
`noise_speed`	Noise Speed Default: `8.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Screen Shake

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Screen Shake screenshot placeholder — **Screen Shake screenshot**

RIGHT-CLICK SUBMENU

Logic

Right-click → Actuators → Logic

actuator • shared

Get Variable

3D

Reads a variable from self, another node, or GlobalVars and stores it for later bricks.

Menu Add Logic Brick → Actuators → Logic

Source


           actuators/common/get_variable_actuator.gd

Options

Property	Details
`source`	Source Choices: Self,Node Name,GlobalVars Default: `node_name`
`source_node_name`	Source Node Name
`variable_name`	Variable Name
`store_as`	Store As
`fallback_value`	Fallback Value

Using this brick

Typical uses

Perform the logic action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Get Variable

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

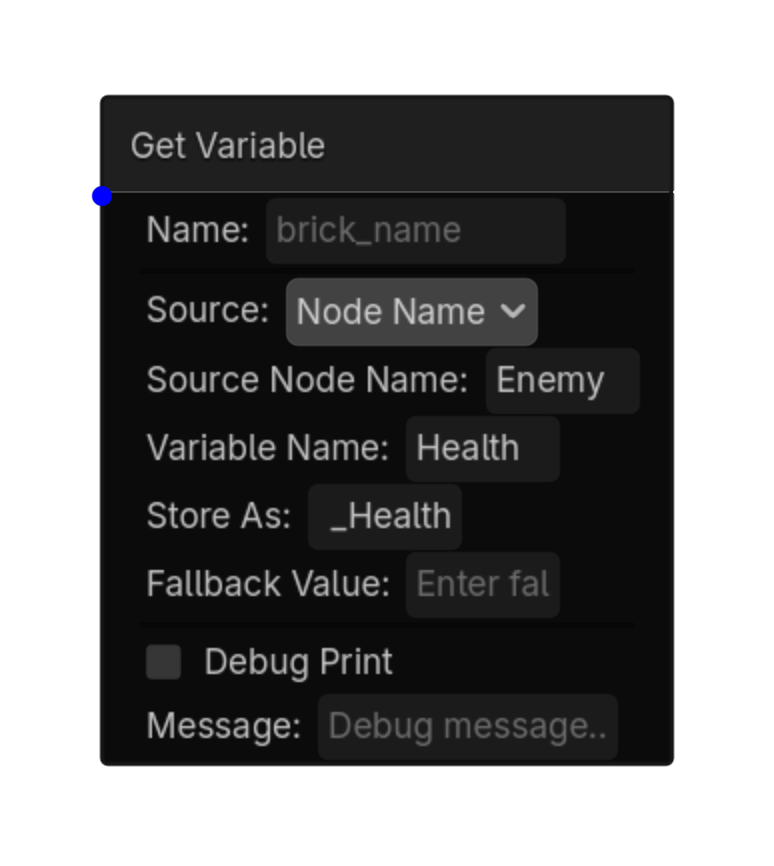

Get Variable screenshot placeholder — **Get Variable screenshot**

actuator • shared

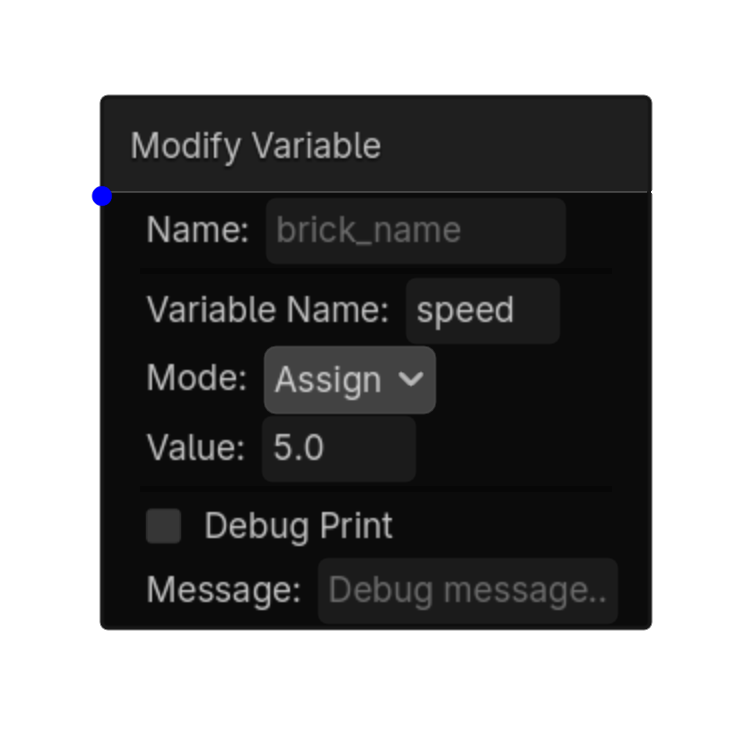

Modify Variable

3D

Modifies a variable's value.\nWorks with local and global variables.\nAutomatically uses GlobalVars if not found locally.

Menu Add Logic Brick → Actuators → Logic

Source


           actuators/common/variable_actuator.gd

Options

Property	Details
`variable_name`	Variable Name
`mode`	Mode Choices: Assign,Add,Copy,Toggle Default: `assign`
`value`	Value
`source_variable`	Source Variable

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Modify Variable

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Modify Variable screenshot placeholder — **Modify Variable screenshot**

actuator • shared

Random

3D

Similar to UPBGE's Random actuator

Menu Add Logic Brick → Actuators → Logic

Source


           actuators/common/random_actuator.gd

Options

Property	Details
`variable_name`	Variable Name
`distribution`	Distribution Choices: Bool Constant,Bool Uniform,Bool Bernoulli,Int Constant,Int Uniform,Int Poisson,Float Constant,Float Uniform,Float Normal,Float Neg Exp Default: `int_uniform`
`bool_value`	Bool Value Default: `true`
`bool_probability`	Bool Probability Default: `0.5`
`int_value`	Int Value Default: `0`
`int_min`	Int Min Default: `0`
`int_max`	Int Max Default: `100`
`int_lambda`	Int Lambda Default: `1.0`
`float_value`	Float Value Default: `0.0`
`float_min`	Float Min Default: `0.0`
`float_max`	Float Max Default: `1.0`
`float_mean`	Float Mean Default: `0.0`
`float_stddev`	Float Stddev Default: `1.0`
`float_lambda`	Float Lambda Default: `1.0`
`use_seed`	Use Seed Default: `false`
`seed_value`	Seed Value Default: `0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Random

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

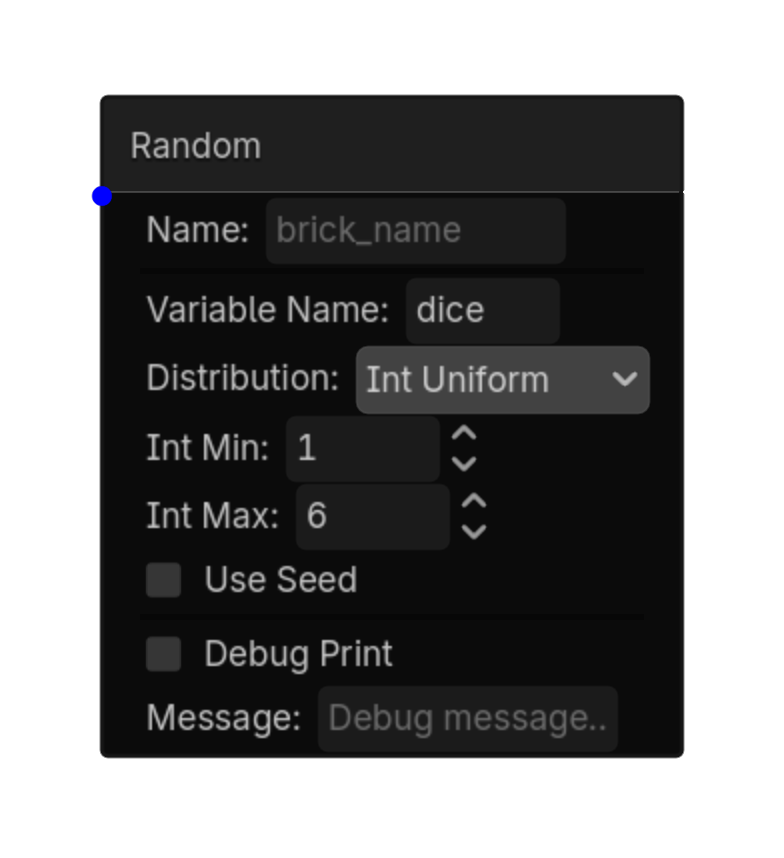

Random screenshot placeholder — **Random screenshot**

actuator • shared

Signal

3D

Sends a signal to other nodes.\nReceiving nodes need a Signal Sensor listening for the subject.

Menu Add Logic Brick → Actuators → Logic

Source


           actuators/common/message_actuator.gd

Options

Property	Details
`target_group`	Target Group
`subject`	Subject
`body`	Body

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Signal

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

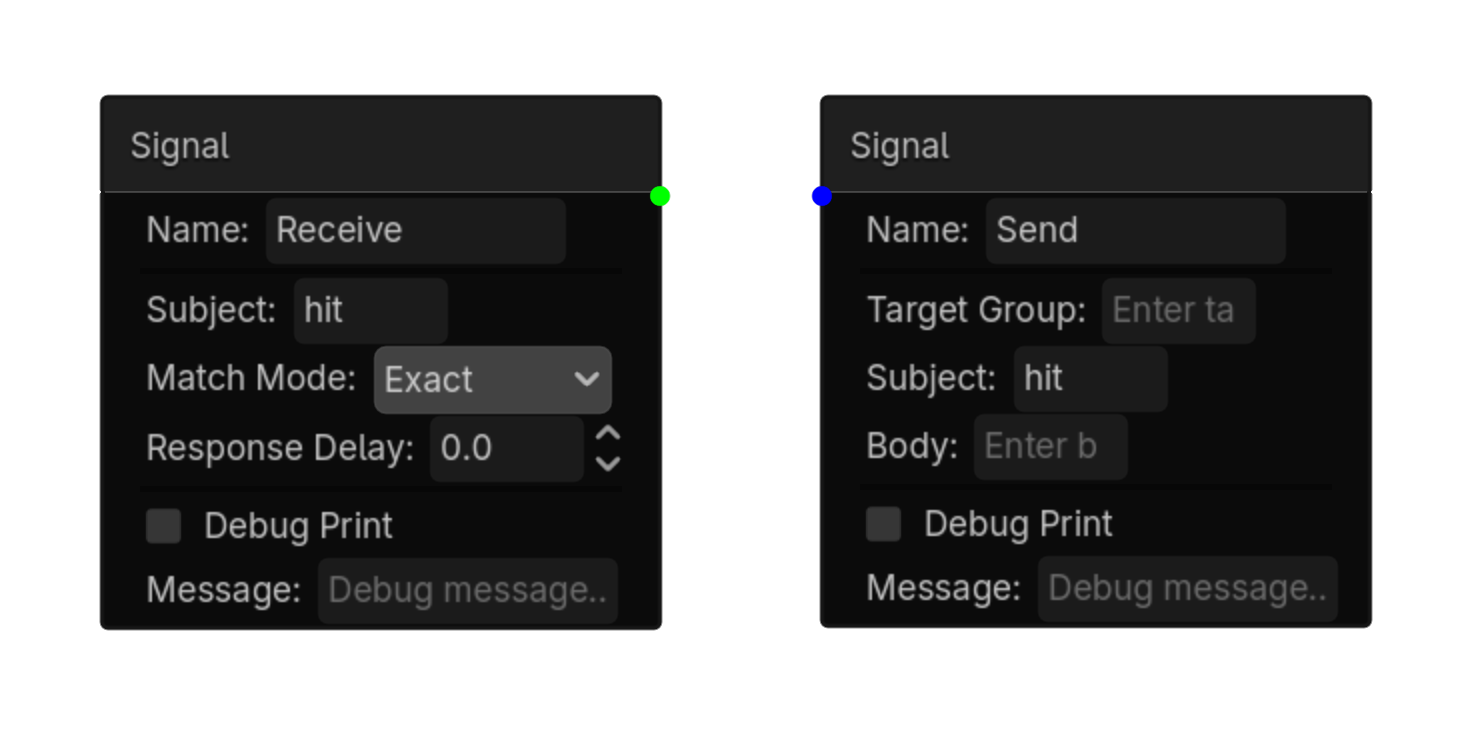

Signal screenshot placeholder — **Signal screenshot**

actuator • shared

State

3D

State logic brick.

Menu Add Logic Brick → Actuators → Logic

Source


           actuators/common/state_actuator.gd

Options

Property	Details
`state_id`	State Id Choices: __STATE_LIST__

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller State

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

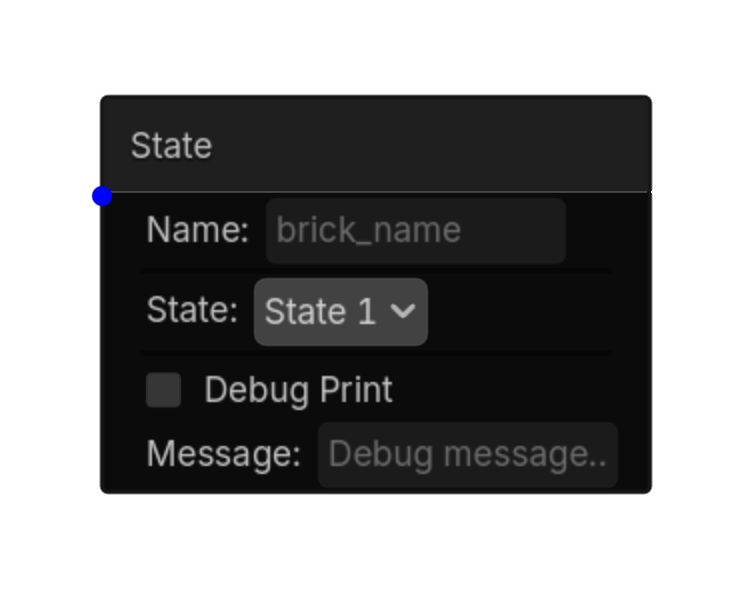

State screenshot placeholder — **State screenshot**

RIGHT-CLICK SUBMENU

Motion

Right-click → Actuators → Motion

actuator • 3d

Character Jump

3D

Applies a jump impulse to a CharacterBody3D. Pair with the Character Actuator for gravity and ground detection.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/jump_actuator.gd

Options

Property	Details
`jump_height`	Jump Height Default: `4.5`
`gravity_strength`	Gravity Strength Default: `9.8`
`max_jumps`	Max Jumps Default: `1`
`inherit_platform_velocity`	Inherit Platform Velocity Default: `true`

Using this brick

Typical uses

Perform the motion action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Character Jump

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

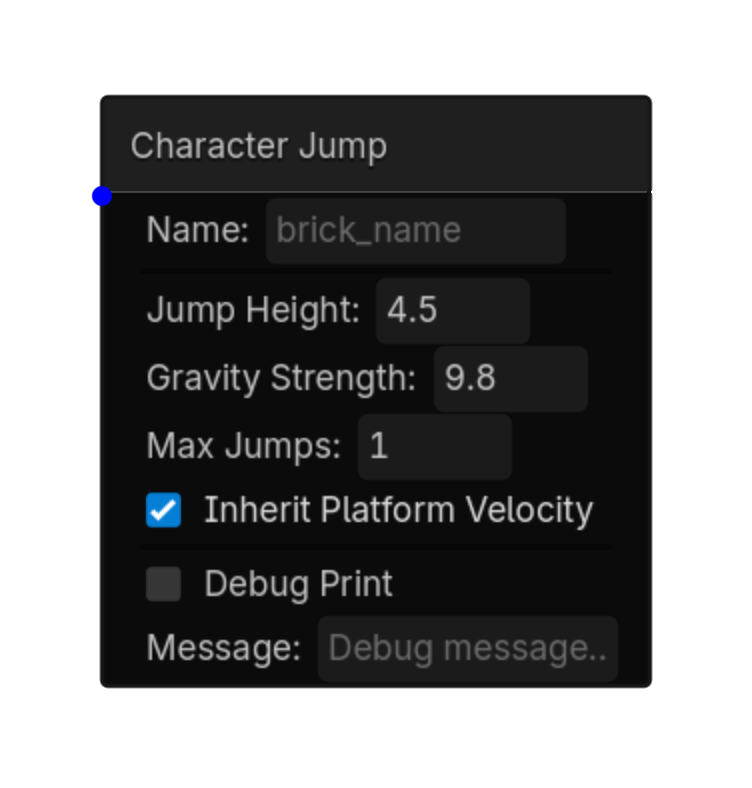

Character Jump screenshot placeholder — **Character Jump screenshot**

actuator • 3d

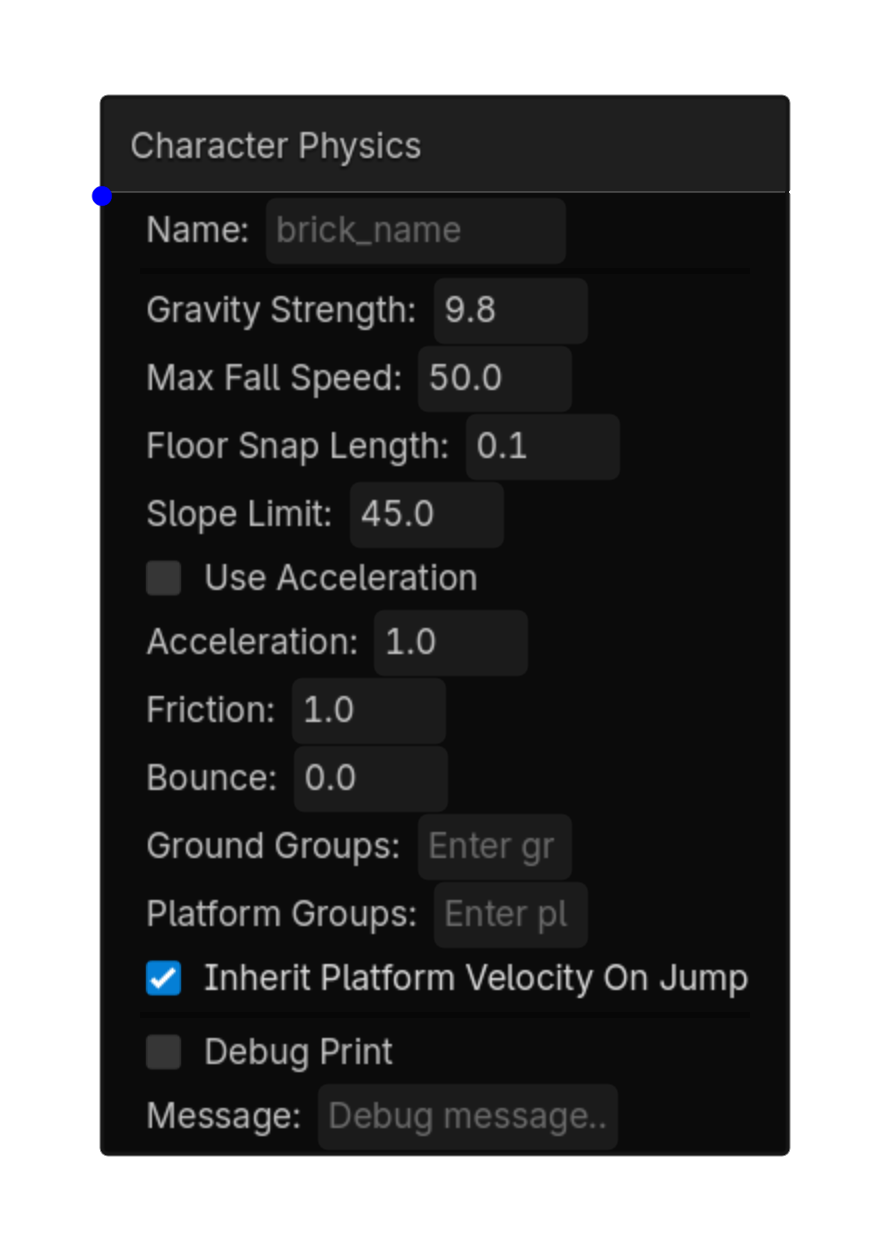

Character Physics

3D

Character Actuator - Unified character controller for CharacterBody3D Handles gravity, ground detection, and move_and_slide() in one brick. Jumping is handled by the separate Jump Actuator. Pair with an Always Sensor so it runs every frame. Horizontal movement is handled by separate Motion / Move Towards Actuators. Execution order (guaranteed): 1. Pre-process: reset horizontal velocity 2. This chain: apply gravity, detect ground 3. Other chains: motion actuators set velocity.x / velocity.z; Jump Actuator sets velocity.y 4. Post-process: move_and_slide()

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/character_actuator.gd

Options

Property	Details
`gravity_strength`	Gravity Strength Default: `9.8`
`max_fall_speed`	Max Fall Speed Default: `50.0`
`floor_snap_length`	Floor Snap Length Default: `0.1`
`slope_limit`	Slope Limit Default: `45.0`
`use_acceleration`	Use Acceleration Default: `false`
`acceleration`	Acceleration Default: `1.0`
`friction`	Friction Default: `1.0`
`bounce`	Bounce Default: `0.0`
`ground_groups`	Ground Groups
`platform_groups`	Platform Groups e.g. moving_platform
`inherit_platform_velocity_on_jump`	Inherit Platform Velocity On Jump Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Character Physics

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Character Physics screenshot placeholder — **Character Physics screenshot**

actuator • 3d

Look At Input

3D

Rotates a Node3D to face the combined Input Map direction instead of the movement/slide direction. Type the node name; the generated script finds it in the current scene at runtime.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/look_at_input_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name Default: `MeshInstance3D` Node3D node name
`forward_action`	Forward Action Default: `move_forward` Input Map action
`backward_action`	Backward Action Default: `move_backward` Input Map action
`left_action`	Left Action Default: `move_left` Input Map action
`right_action`	Right Action Default: `move_right` Input Map action
`forward_axis`	Forward Axis Choices: -Z (Godot Default),+Z,+X,-X Default: `-z`
`smoothing`	Smoothing Default: `0.1`
`camera_relative`	Camera Relative Default: `false`
`camera_name`	Camera Name Optional camera node name

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Look At Input

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

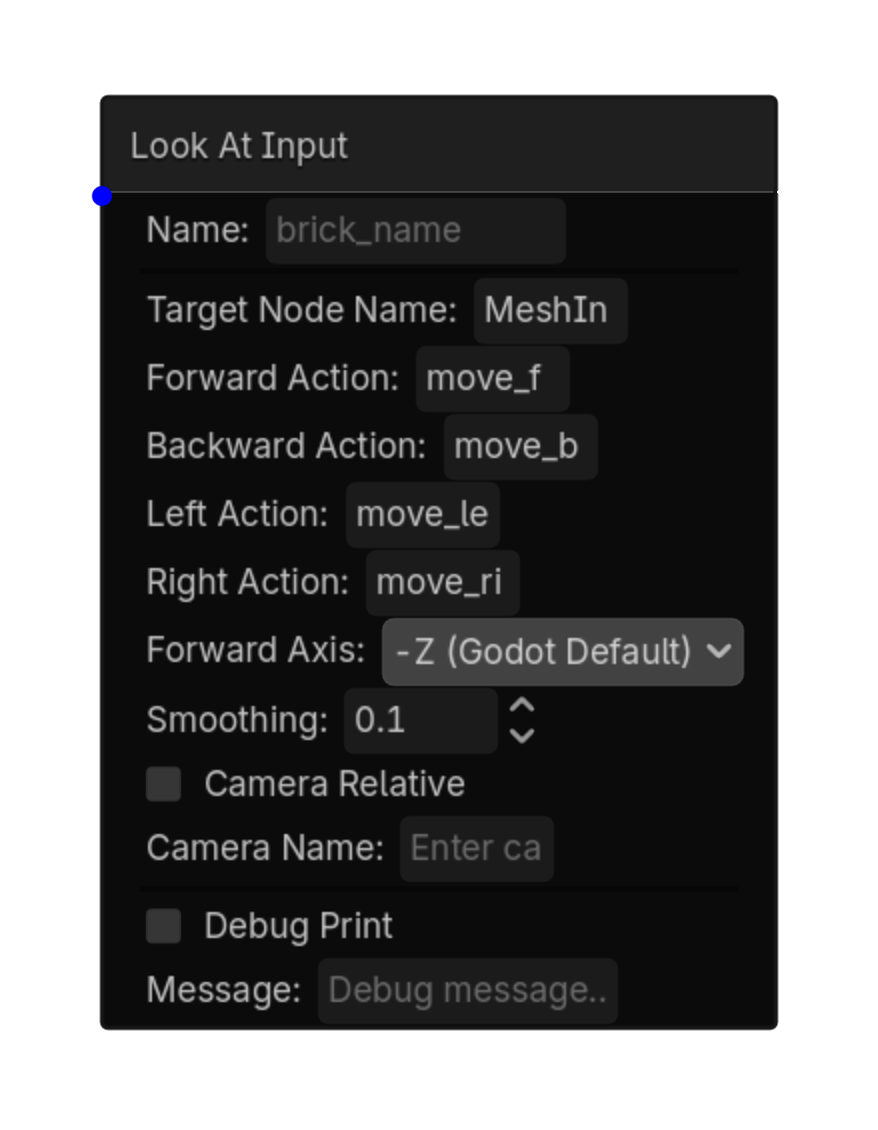

Look At Input screenshot placeholder — **Look At Input screenshot**

actuator • 3d

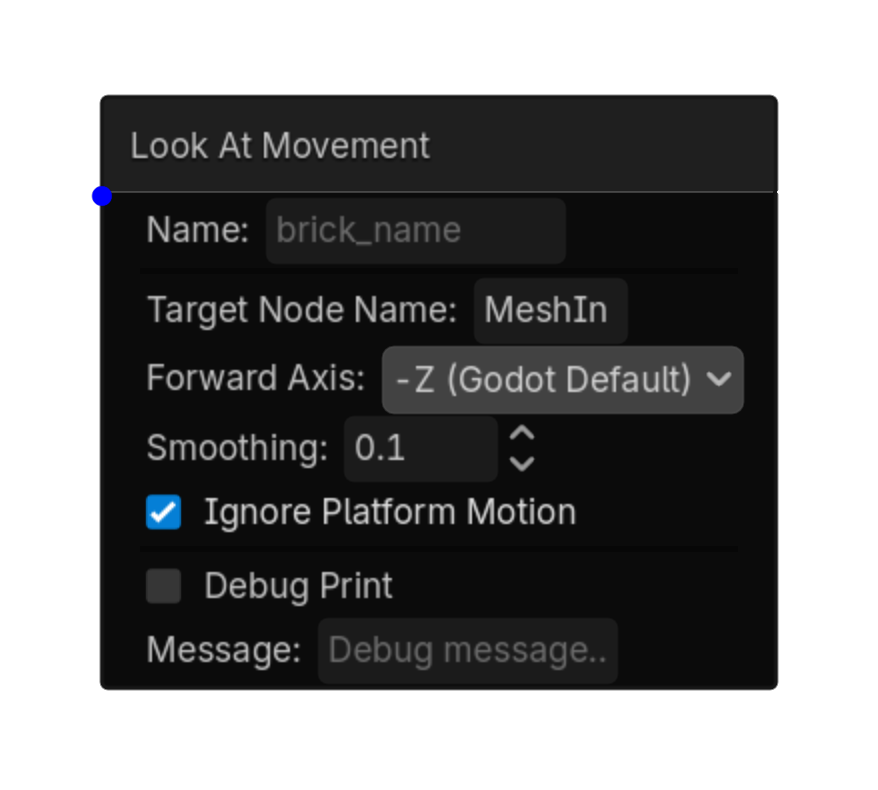

Look At Movement

3D

Rotates a Node3D to face the direction of movement. Type the node name; the generated script finds it in the current scene at runtime.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/look_at_movement_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name Default: `MeshInstance3D` Node3D node name
`forward_axis`	Forward Axis Choices: -Z (Godot Default),+Z,+X,-X Default: `-z`
`smoothing`	Smoothing Default: `0.1`
`ignore_platform_motion`	Ignore Platform Motion Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Look At Movement

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Look At Movement screenshot placeholder — **Look At Movement screenshot**

actuator • 3d

Motion

3D

Moves or rotates a target node. Leave Target Node Name blank to affect self. X/Y/Z fields accept numbers, variable names, or math expressions.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/motion_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name blank = self, or child/node name
`motion_type`	Motion Type Choices: Location,Rotation Default: `location`
`movement_method`	Movement Method Choices: Character Velocity,Translate,Position Default: `character_velocity`
`x`	X Default: `0.0`
`y`	Y Default: `0.0`
`z`	Z Default: `0.0`
`space`	Space Choices: Local,Global Default: `local`
`camera_relative`	Camera Relative Default: `false`
`camera_name`	Camera Name e.g. Camera3D
`call_move_and_slide`	Call Move And Slide Default: `false`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Motion

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

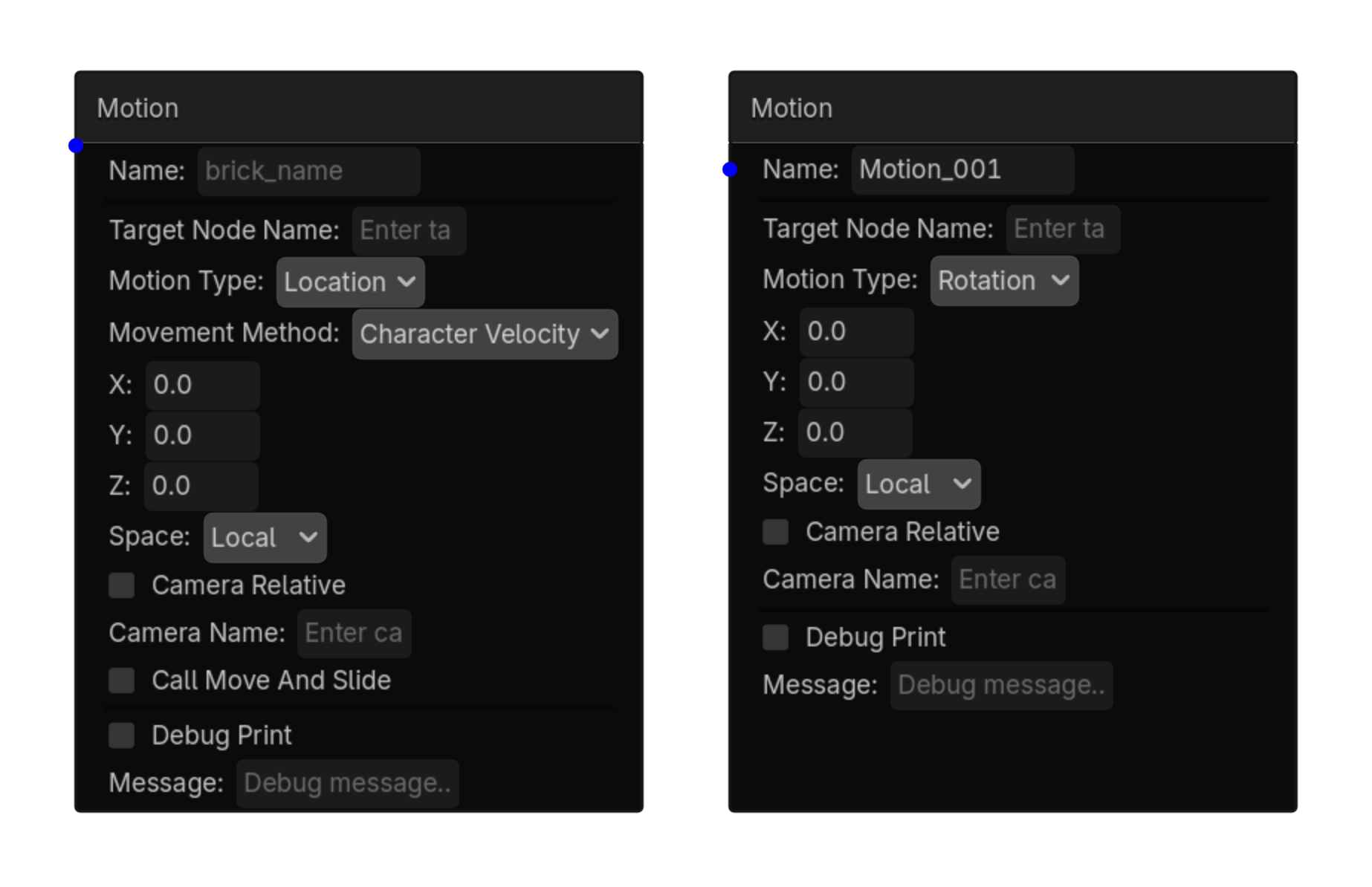

Motion screenshot placeholder — **Motion screenshot**

actuator • 3d

Mouse

3D

Toggle cursor visibility or rotate object based on mouse movement

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/mouse_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Cursor Visibility,Mouse Look,Look Towards,Move Towards Cursor,Move To Mouse Click Default: `cursor_visibility`
`cursor_visible`	Cursor Visible Default: `false`
`use_x_axis`	Use X Axis Default: `true`
`use_y_axis`	Use Y Axis Default: `true`
`x_target`	X Target Default: `self`
`y_target`	Y Target Default: `self`
`x_sensitivity`	X Sensitivity Default: `0.1`
`y_sensitivity`	Y Sensitivity Default: `0.1`
`x_invert`	X Invert Default: `false`
`y_invert`	Y Invert Default: `false`
`x_threshold`	X Threshold Default: `0.0`
`y_threshold`	Y Threshold Default: `0.0`
`x_min_degrees`	X Min Degrees Default: `0.0`
`x_max_degrees`	X Max Degrees Default: `0.0`
`y_min_degrees`	Y Min Degrees Default: `-90.0`
`y_max_degrees`	Y Max Degrees Default: `90.0`
`x_rotation_axis`	X Rotation Axis Choices: X,Y,Z Default: `y`
`y_rotation_axis`	Y Rotation Axis Choices: X,Y,Z Default: `x`
`x_use_local`	X Use Local Default: `false`
`y_use_local`	Y Use Local Default: `false`
`recenter_cursor`	Recenter Cursor Default: `true`
`mouse_target`	Mouse Target Default: `self`
`mouse_velocity`	Mouse Velocity Default: `5.0`
`mouse_acceleration`	Mouse Acceleration Default: `0.0`
`mouse_turn_speed`	Mouse Turn Speed Default: `0.0`
`mouse_arrival_distance`	Mouse Arrival Distance Default: `0.1`
`mouse_facing_axis`	Mouse Facing Axis Choices: +X,-X,+Y,-Y,+Z,-Z Default: `+z`
`mouse_lock_y`	Mouse Lock Y Default: `true`
`click_button`	Click Button Choices: Left,Right,Middle Default: `left`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Mouse

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

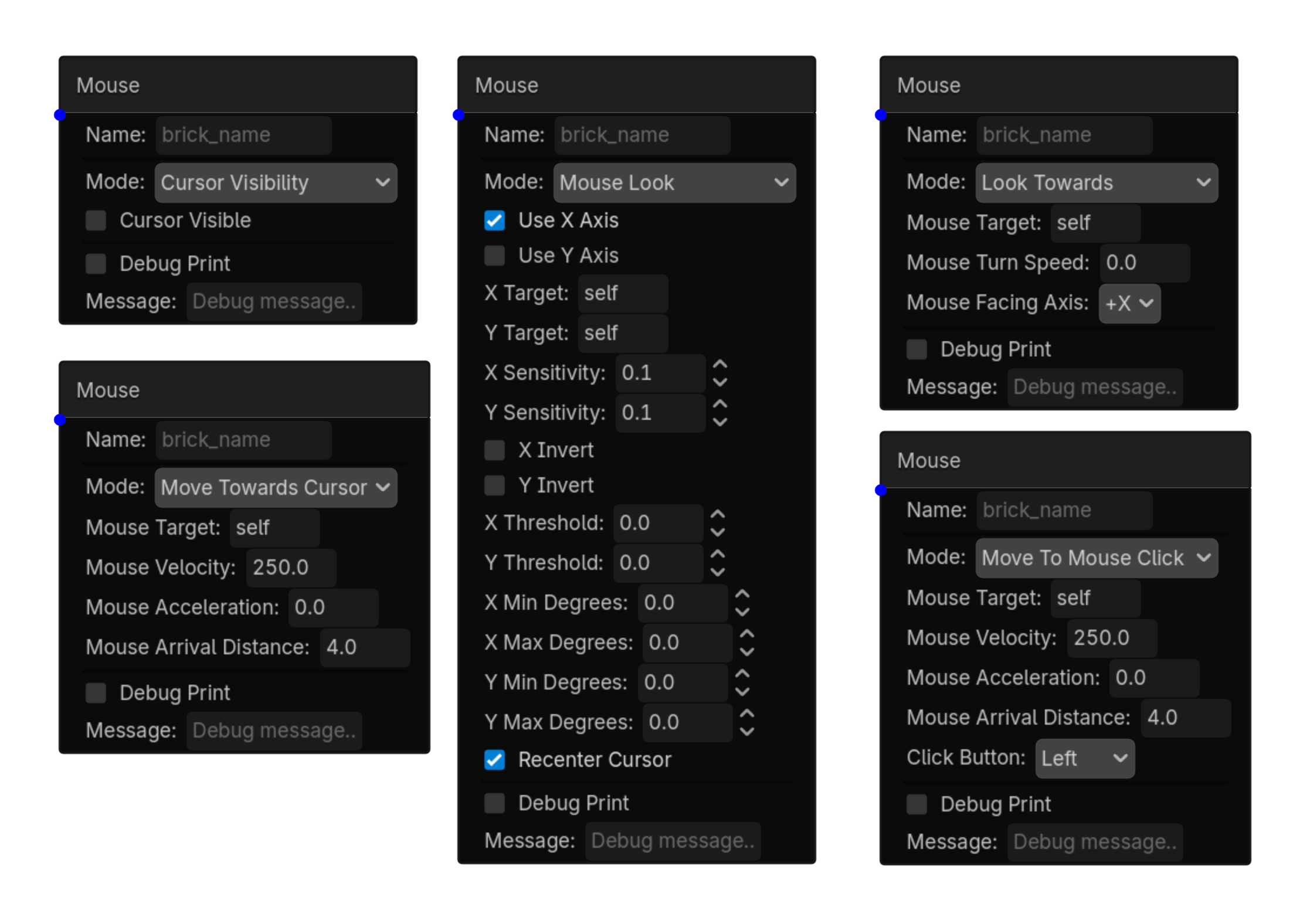

Mouse screenshot placeholder — **Mouse screenshot**

actuator • 3d

Move Towards

3D

Moves toward or away from a target.\nSeek: move directly toward target\nFlee: move away from target\nPath Follow: use NavigationAgent3D to pathfind toward target.\n\n⚠ Path Follow finds the NavigationAgent3D by typed node name.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/move_towards_actuator.gd

Options

Property	Details
`navigation_agent_node_name`	Navigation Agent Node Name Default: `NavigationAgent3D` NavigationAgent3D node name
`behavior`	Behavior Choices: Seek,Flee,Path Follow Default: `seek`
`target_mode`	Target Mode Choices: Group,Node Name,Vector Variable Default: `group`
`target_name`	Target Name
`target_variable`	Target Variable
`arrival_distance`	Arrival Distance Default: `1.0`
`velocity`	Velocity Default: `5.0`
`acceleration`	Acceleration Default: `0.0`
`turn_speed`	Turn Speed Default: `0.0`
`face_target`	Face Target Default: `false`
`facing_axis`	Facing Axis Choices: +X,-X,+Y,-Y,+Z,-Z Default: `+z`
`use_navmesh_normal`	Use Navmesh Normal Default: `false`
`self_terminate`	Self Terminate Default: `false`
`lock_y_velocity`	Lock Y Velocity Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Move Towards

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

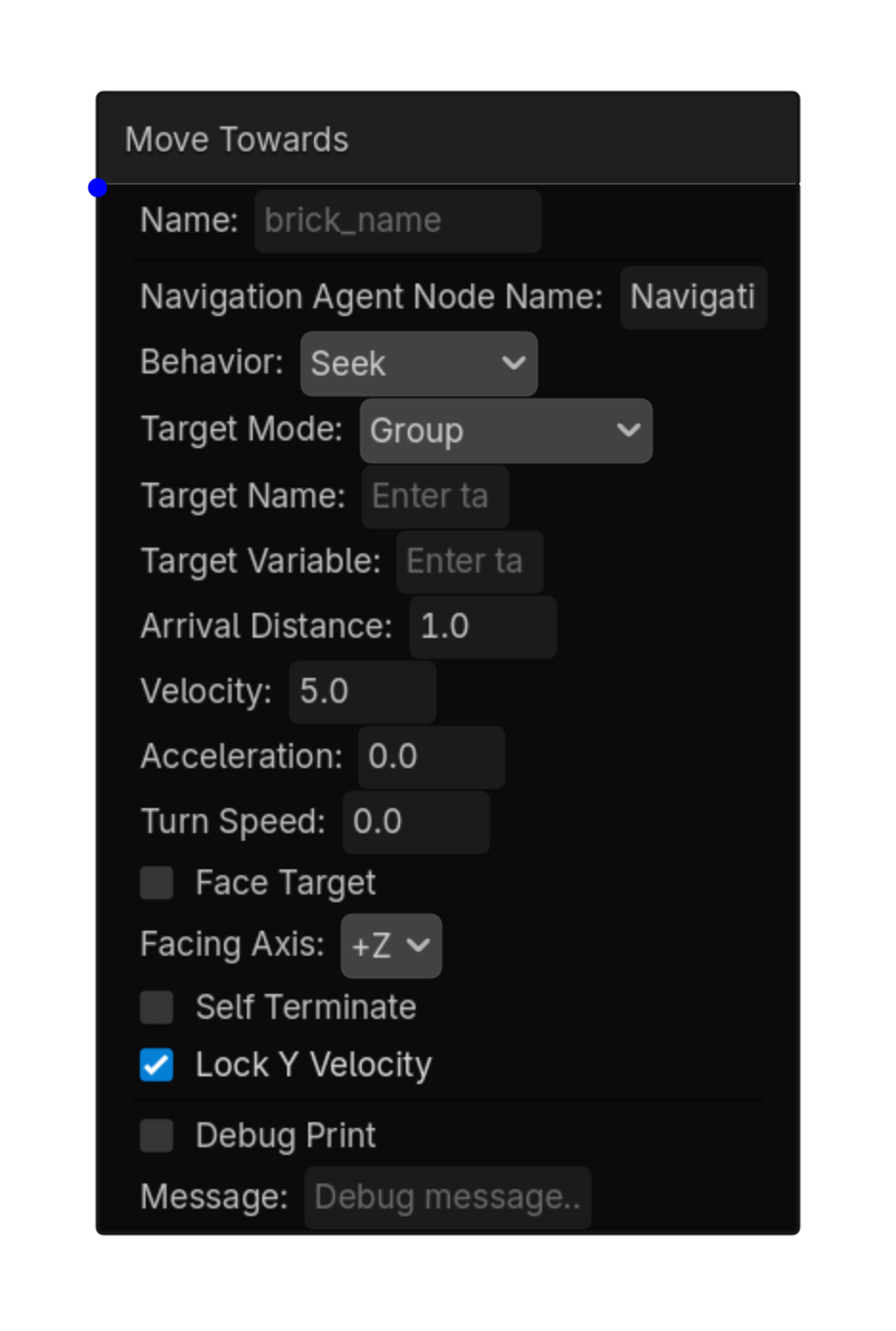

Move Towards screenshot placeholder — **Move Towards screenshot**

actuator • 3d

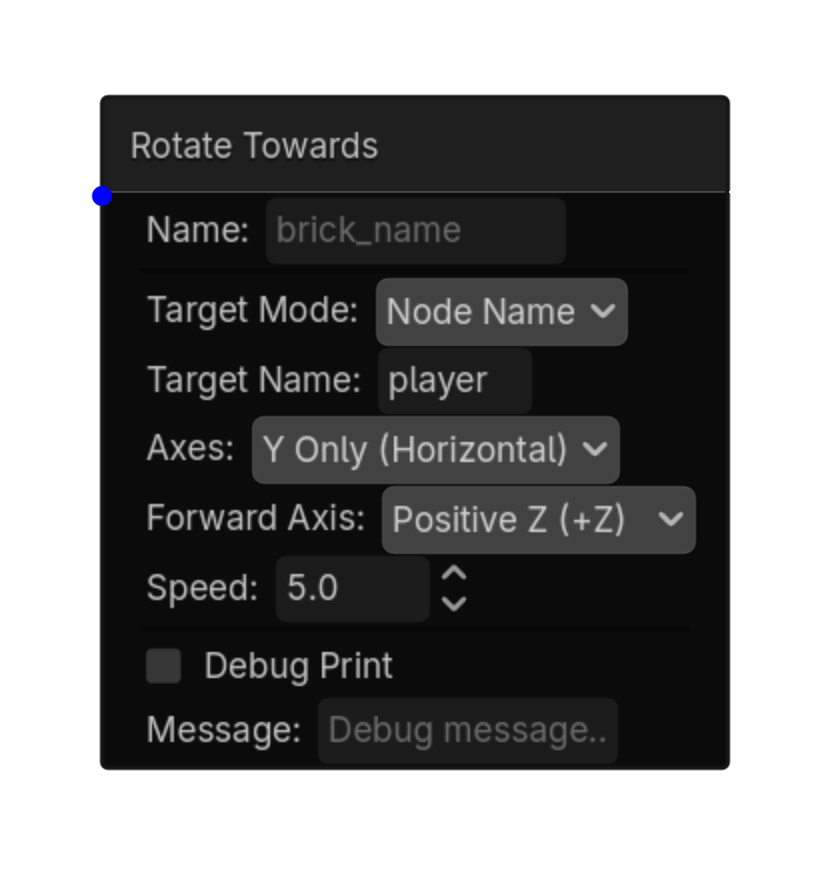

Rotate Towards

3D

Rotates this node to face a target found by name or group.\nUseful for turrets, enemies tracking a player, or any look-at behaviour.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/rotate_towards_actuator.gd

Options

Property	Details
`target_mode`	Target Mode Choices: Node Name,Group Default: `node_name`
`target_name`	Target Name
`axes`	Axes Choices: Y Only (Horizontal),X Only (Vertical),Both Default: `y_only`
`forward_axis`	Forward Axis Choices: Positive Z (+Z),Negative Z (-Z) Default: `positive_z`
`speed`	Speed Choices: 0.0,360.0,0.1 Default: `5.0`
`clamp_x`	Clamp X Default: `false`
`clamp_x_min`	Clamp X Min Choices: -180.0,0.0,0.1 Default: `-45.0`
`clamp_x_max`	Clamp X Max Choices: 0.0,180.0,0.1 Default: `45.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Rotate Towards

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Rotate Towards screenshot placeholder — **Rotate Towards screenshot**

actuator • 3d

Teleport

3D

Instantly sets position to a target node or coordinates.\nUseful for respawning, portals, checkpoints.\n\n⚠ Target Node mode adds an @export in the Inspector — assign the destination node there.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/teleport_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name Default: `Target` Target Node3D node name
`mode`	Mode Choices: Target Node,Coordinates,Vector Variable Default: `target_node`
`x`	X Default: `0.0`
`y`	Y Default: `0.0`
`z`	Z Default: `0.0`
`vector_variable`	Vector Variable
`copy_rotation`	Copy Rotation Default: `false`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Teleport

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Teleport screenshot placeholder — **Teleport screenshot**

actuator • 3d

Waypoint Path

3D

Moves this node through a series of waypoints or along an editable Path3D curve.

Menu Add Logic Brick → Actuators → Motion

Source


           actuators/3d/waypoint_path_actuator.gd

Options

Property	Details
`path_source`	Path Source Choices: Node3D Positions:node_positions,Path3D:path3d Default: `node_positions`
`waypoints`	Waypoints Default: `[]`
`loop_mode`	Loop Mode Choices: Loop,Ping Pong,Once Default: `loop`
`speed`	Speed Default: `5.0` number, variable, or expression
`arrival_distance`	Arrival Distance Default: `0.5` number, variable, or expression
`face_direction`	Face Direction Default: `false`
`follow_curve_tilt`	Follow Curve Tilt Default: `false`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Waypoint Path

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Waypoint Path screenshot placeholder — **Waypoint Path screenshot**

RIGHT-CLICK SUBMENU

Object

Right-click → Actuators → Object

actuator • shared

Get Transforms

3D

Gets position, rotation, and scale from a node or the nearest member of a group and stores the values as variables.

Menu Add Logic Brick → Actuators → Object

Source


           actuators/common/get_transforms_actuator.gd

Options

Property	Details
`target_mode`	Target Mode Choices: Node Name,Group Default: `node_name`
`target_name`	Target Name Node or group name
`get_position`	Get Position Default: `true`
`position_variable`	Position Variable
`get_rotation`	Get Rotation Default: `false`
`rotation_variable`	Rotation Variable
`get_scale`	Get Scale Default: `false`
`scale_variable`	Scale Variable

Using this brick

Typical uses

Perform the object action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Get Transforms

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Get Transforms screenshot placeholder — **Get Transforms screenshot**

actuator • shared

Set Transforms

3D

Sets position, rotation, and scale from entered values or variables, instantly or over time.

Menu Add Logic Brick → Actuators → Object

Source


           actuators/common/scale_actuator.gd

This brick exposes no configurable properties.

Using this brick

Typical uses

Perform the object action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Set Transforms

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Set Transforms screenshot placeholder — **Set Transforms screenshot**

actuator • 3d

Edit Object

3D

Similar to UPBGE's Edit Object actuator.

Menu Add Logic Brick → Actuators → Object

Source


           actuators/3d/edit_object_actuator.gd

Options

Property	Details
`edit_type`	Edit Type Choices: Add Object,End Object,Replace Mesh Default: `End Object`
`spawn_object`	Spawn Object Choices: .tscn,.scn
`spawn_point`	Spawn Point Default: `NodePath("")`
`velocity_x`	Velocity X Default: `0.0`
`velocity_y`	Velocity Y Default: `0.0`
`velocity_z`	Velocity Z Default: `0.0`
`velocity_local`	Velocity Local Default: `false`
`lifespan`	Lifespan Default: `0.0`
`end_mode`	End Mode Choices: Queue Free,Free Immediate Default: `queue_free`
`end_delay`	End Delay Default: `0.1`
`mesh_path`	Mesh Path Choices: .mesh,.obj

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Edit Object

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Edit Object screenshot placeholder — **Edit Object screenshot**

actuator • 3d

Object Pool

3D

Spawns objects from reusable pools.\nFaster than instancing — reuses inactive nodes.\nPools are created at startup.

Menu Add Logic Brick → Actuators → Object

Source


           actuators/3d/object_pool_actuator.gd

Options

Property	Details
`action`	Action Choices: Spawn,Despawn All Default: `spawn`
`scenes`	Scenes Default: `[]`
`spawn_mode`	Spawn Mode Choices: Random,All Default: `random`
`spawn_amount`	Spawn Amount Default: `1`
`spawn_delay`	Spawn Delay Choices: 0.0,60.0,0.05 Default: `0.0`
`spawn_at_self`	Spawn At Self Default: `true`
`spawn_node`	Spawn Node
`inherit_rotation`	Inherit Rotation Default: `true`
`lifespan`	Lifespan Choices: 0.0,600.0,0.1 Default: `0.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Object Pool

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Object Pool screenshot placeholder — **Object Pool screenshot**

actuator • 3d

Parent

3D

Similar to UPBGE's Parent actuator

Menu Add Logic Brick → Actuators → Object

Source


           actuators/3d/parent_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Set Parent,Remove Parent Default: `set_parent`
`parent_node`	Parent Node
`keep_transform`	Keep Transform Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Parent

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Parent screenshot placeholder — **Parent screenshot**

actuator • shared

Property

3D

Sets properties on a target node.\nChoose the node type to see its available properties.\nLeave a field empty to skip setting that property.\n⚠ Adds @export in Inspector — assign the target node.

Menu Add Logic Brick → Actuators → Object

Source


           actuators/common/property_actuator.gd

Options

Property	Details
`node_type`	Node Type Choices: Node,Mesh Instance,Collision Shape,Light,Rigid Body,Character Body,Animation Player,Control,Label,Button,Camera,Sprite,Custom Default: `Node`
`target_node`	Target Node Default: `self`
`_group_n3d_visibility`	Group N3D Visibility Choices: Visibility
`n3d_visible`	N3D Visible Default: `true`
`_group_n3d_transform`	Group N3D Transform Choices: Transform
`n3d_pos_x`	N3D Pos X
`n3d_pos_y`	N3D Pos Y
`n3d_pos_z`	N3D Pos Z
`n3d_rot_x`	N3D Rot X
`n3d_rot_y`	N3D Rot Y
`n3d_rot_z`	N3D Rot Z
`n3d_scale_x`	N3D Scale X
`n3d_scale_y`	N3D Scale Y
`n3d_scale_z`	N3D Scale Z
`_group_mesh_basic`	Group Mesh Basic Choices: Mesh Instance
`mesh_visible`	Mesh Visible Default: `true`
`mesh_cast_shadow`	Mesh Cast Shadow
`_group_col_basic`	Group Col Basic Choices: Collision Shape
`col_disabled`	Col Disabled Default: `false`
`_group_light_basic`	Group Light Basic Choices: Basic
`light_visible`	Light Visible Default: `true`
`light_energy`	Light Energy
`_group_light_color`	Group Light Color Choices: Color
`light_color`	Light Color Default: `Color(1`
`_group_light_shadow`	Group Light Shadow Choices: Shadow
`light_shadow`	Light Shadow
`_group_rb_basic`	Group Rb Basic Choices: Basic
`rb_freeze`	Rb Freeze
`rb_mass`	Rb Mass
`_group_rb_damping`	Group Rb Damping Choices: Damping
`rb_gravity_scale`	Rb Gravity Scale
`rb_linear_damp`	Rb Linear Damp
`rb_angular_damp`	Rb Angular Damp
`_group_cb_basic`	Group Cb Basic Choices: Basic
`cb_up_dir_y`	Cb Up Dir Y
`cb_max_slides`	Cb Max Slides
`_group_cb_floor`	Group Cb Floor Choices: Floor
`cb_floor_max_angle`	Cb Floor Max Angle
`cb_stop_on_slope`	Cb Stop On Slope
`cb_block_on_wall`	Cb Block On Wall
`cb_slide_on_ceiling`	Cb Slide On Ceiling
`_group_anim_basic`	Group Anim Basic Choices: Animation Player
`anim_speed_scale`	Anim Speed Scale
`_group_ctrl_basic`	Group Ctrl Basic Choices: Basic
`ctrl_visible`	Ctrl Visible Default: `true`
`ctrl_modulate`	Ctrl Modulate Default: `Color(1`
`_group_ctrl_transform`	Group Ctrl Transform Choices: Transform
`ctrl_size_x`	Ctrl Size X
`ctrl_size_y`	Ctrl Size Y
`ctrl_pos_x`	Ctrl Pos X
`ctrl_pos_y`	Ctrl Pos Y
`ctrl_rotation`	Ctrl Rotation
`ctrl_scale_x`	Ctrl Scale X
`ctrl_scale_y`	Ctrl Scale Y
`_group_lbl_basic`	Group Lbl Basic Choices: Label
`lbl_text`	Lbl Text
`lbl_visible`	Lbl Visible Default: `true`
`lbl_modulate`	Lbl Modulate Default: `Color(1`
`_group_btn_basic`	Group Btn Basic Choices: Button
`btn_disabled`	Btn Disabled Default: `false`
`btn_text`	Btn Text
`btn_visible`	Btn Visible Default: `true`
`_group_cam_basic`	Group Cam Basic Choices: Camera
`cam_fov`	Cam Fov
`cam_near`	Cam Near
`cam_far`	Cam Far
`cam_current`	Cam Current
`_group_spr_basic`	Group Spr Basic Choices: Basic
`spr_visible`	Spr Visible Default: `true`
`spr_modulate`	Spr Modulate Default: `Color(1`
`spr_flip_h`	Spr Flip H
`spr_flip_v`	Spr Flip V
`spr_pixel_size`	Spr Pixel Size
`_group_spr_display`	Group Spr Display Choices: Display
`spr_billboard`	Spr Billboard
`spr_transparent`	Spr Transparent
`spr_shaded`	Spr Shaded
`spr_double_sided`	Spr Double Sided
`_group_spr_frames`	Group Spr Frames Choices: Frames
`spr_frame`	Spr Frame
`spr_hframes`	Spr Hframes
`spr_vframes`	Spr Vframes
`_group_custom`	Group Custom Choices: Custom Property
`custom_property`	Custom Property
`custom_value`	Custom Value

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Property

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Property screenshot placeholder — **Property screenshot**

actuator • shared

Visibility

3D

Shows, hides, or toggles visibility of a node by name. Uses the same current-scene recursive name lookup as the Text Actuator.

Menu Add Logic Brick → Actuators → Object

Source


           actuators/common/visibility_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name Default: `self` Node name
`action`	Action Choices: Show,Hide,Toggle Default: `show`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Visibility

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Visibility screenshot placeholder — **Visibility screenshot**

RIGHT-CLICK SUBMENU

Physics

Right-click → Actuators → Physics

actuator • 3d

Collision

3D

Can enable/disable CollisionShape3D nodes, set collision layer/mask bits, and toggle Area3D monitoring. Target node is found by name via find_child().

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/collision_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name
`action`	Action Choices: Disable Shape,Enable Shape,Set Layer Bit,Set Mask Bit,Enable Monitoring,Disable Monitoring Default: `0`
`layer_value`	Layer Value Default: `1`
`bit_enabled`	Bit Enabled Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Collision

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Collision screenshot placeholder — **Collision screenshot**

actuator • 3d

Force

3D

NOTE: Only works with RigidBody3D, not CharacterBody3D

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/force_actuator.gd

Options

Property	Details
`x`	X Default: `0.0`
`y`	Y Default: `0.0`
`z`	Z Default: `0.0`
`max_force`	Max Force Default: `0.0`
`space`	Space Choices: Local,Global Default: `local`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Force

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Force screenshot placeholder — **Force screenshot**

actuator • 3d

Gravity

3D

Use this with RigidBody3D objects. CharacterBody3D gravity belongs in the Character Actuator. This actuator writes to RigidBody3D.constant_force instead of using apply_central_force(). That makes gravity keep working after a one-shot trigger such as a Delay sensor.

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/gravity_actuator.gd

Options

Property	Details
`gravity_strength`	Gravity Strength Default: `9.8`
`direction_x`	Direction X Default: `0.0`
`direction_y`	Direction Y Default: `-1.0`
`direction_z`	Direction Z Default: `0.0`
`use_mass`	Use Mass Default: `true`
`override_world_gravity`	Override World Gravity Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Gravity

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Gravity screenshot placeholder — **Gravity screenshot**

actuator • 3d

Impulse

3D

Applies a one-shot impulse to a RigidBody3D.\nFires once per activation — does not accumulate each frame.

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/impulse_actuator.gd

Options

Property	Details
`impulse_type`	Impulse Type Choices: Central,Positional,Torque Default: `central`
`x`	X Default: `0.0`
`y`	Y Default: `0.0`
`z`	Z Default: `0.0`
`pos_x`	Pos X Default: `0.0`
`pos_y`	Pos Y Default: `0.0`
`pos_z`	Pos Z Default: `0.0`
`space`	Space Choices: Local,Global Default: `local`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Impulse

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Impulse screenshot placeholder — **Impulse screenshot**

actuator • 3d

Linear Velocity

3D

Similar to UPBGE's Linear Velocity actuator

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/linear_velocity_actuator.gd

Options

Property	Details
`mode`	Mode Choices: Set,Add,Average Default: `set`
`velocity_x`	Velocity X Default: `0.0`
`velocity_y`	Velocity Y Default: `0.0`
`velocity_z`	Velocity Z Default: `0.0`
`max_speed`	Max Speed Default: `0.0`
`local`	Local Default: `true`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Linear Velocity

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Linear Velocity screenshot placeholder — **Linear Velocity screenshot**

actuator • 3d

Physics

3D

Suspend/Resume physics, change mass, gravity, damping, etc.

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/physics_actuator.gd

Options

Property	Details
`physics_action`	Physics Action Choices: Suspend Physics,Resume Physics,Set Mass,Set Gravity Scale,Set Linear Damping,Set Angular Damping,Enable Contact Monitor,Disable Contact Monitor Default: `suspend_physics`
`mass`	Mass Default: `1.0`
`gravity_scale`	Gravity Scale Default: `1.0`
`linear_damp`	Linear Damp Default: `0.0`
`angular_damp`	Angular Damp Default: `0.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Physics

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Physics screenshot placeholder — **Physics screenshot**

actuator • 3d

Torque

3D

Applies torque (rotational force) to RigidBody3D objects

Menu Add Logic Brick → Actuators → Physics

Source


           actuators/3d/torque_actuator.gd

Options

Property	Details
`x`	X Default: `0.0`
`y`	Y Default: `0.0`
`z`	Z Default: `0.0`
`max_torque`	Max Torque Default: `0.0`
`space`	Space Choices: Local,Global Default: `local`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Pair it with an appropriate sensor to control when the action occurs.

Example chain

Choose a sensor Controller Torque

Tip Test the actuator with the simplest possible sensor first, then add variables, timing, or additional conditions.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Torque screenshot placeholder — **Torque screenshot**

RIGHT-CLICK SUBMENU

UI

Right-click → Actuators → UI

actuator • shared

Modulate

3D

Sets or smoothly transitions the color/alpha of a UI or 2D node found by name anywhere in the current scene tree.

Menu Add Logic Brick → Actuators → UI

Source


           actuators/common/modulate_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name
`node_name_source`	Node Name Source Choices: Literal Node Name,String Variable Default: `literal`
`export_node_name`	Export Node Name Default: `false`
`target_modulate`	Target Modulate Choices: Self Modulate,Modulate Default: `self_modulate`
`color`	Color Default: `Color(1`
`transition`	Transition Default: `false`
`transition_speed`	Transition Speed Default: `5.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Modulate

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

Modulate screenshot placeholder — **Modulate screenshot**

actuator • 3d

Progress Bar

3D

Sets the value, min, or max of a ProgressBar, HSlider, VSlider, or any Range node found by name anywhere in the current scene tree.

Menu Add Logic Brick → Actuators → UI

Source


           actuators/3d/progress_bar_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name Default: `ProgressBar`
`node_name_source`	Node Name Source Choices: Literal Node Name,String Variable Default: `literal`
`export_node_name`	Export Node Name Default: `false`
`set_value`	Set Value Default: `true`
`value`	Value Default: `100.0`
`set_min`	Set Min Default: `false`
`min_value`	Min Value Default: `0.0`
`set_max`	Set Max Default: `false`
`max_value`	Max Value Default: `100.0`
`transition`	Transition Default: `false`
`transition_speed`	Transition Speed Default: `5.0`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Progress Bar

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

Progress Bar screenshot placeholder — **Progress Bar screenshot**

actuator • 3d

Text

3D

Updates a Label, Label3D, or RichTextLabel by node name. Searches the whole current scene tree, so this brick can live on any node.

Menu Add Logic Brick → Actuators → UI

Source


           actuators/3d/text_actuator.gd

Options

Property	Details
`target_node_name`	Target Node Name Default: `Label`
`node_name_source`	Node Name Source Choices: Literal Node Name,String Variable Default: `literal`
`export_node_name`	Export Node Name Default: `false`
`mode`	Mode Choices: Variable,Static Default: `variable`
`variable_name`	Variable Name
`prefix`	Prefix
`suffix`	Suffix
`static_text`	Static Text

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Text

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake A continuously active sensor may run this actuator every frame. Use a one-shot condition when the action should happen only once.

Text screenshot placeholder — **Text screenshot**

actuator • shared

Tween

3D

Animates any property on self or on a node found by name anywhere in the current scene tree.

Menu Add Logic Brick → Actuators → UI

Source


           actuators/common/tween_actuator.gd

Options

Property	Details
`target_mode`	Target Mode Choices: Self,Node Default: `self`
`target_node_name`	Target Node Name
`node_name_source`	Node Name Source Choices: Literal Node Name,String Variable Default: `literal`
`export_node_name`	Export Node Name Default: `false`
`property`	Property Default: `modulate:a`
`target_value`	Target Value Default: `0.0`
`duration`	Duration Default: `0.5`
`trans_type`	Trans Type Choices: Linear,Sine,Quint,Quart,Quad,Expo,Elastic,Bounce,Back,Spring,Circular,Cubic Default: `linear`
`ease_type`	Ease Type Choices: In,Out,In Out,Out In Default: `in_out`
`loop`	Loop Default: `false`

Using this brick

Typical uses

Perform the general action described above after a sensor/controller chain succeeds.
Reuse the brick in multiple states or chains with different option values.
Target a specific node by configuring the node field before testing the chain.

Example chain

Choose a sensor Controller Tween

Tip Confirm the target node name and node type before troubleshooting the rest of the chain.

Common mistake Timing options change how long the action takes; avoid retriggering the same transition every frame unless that behavior is intentional.

Building 3D actions

3D Setup and Actuators

Select a 3D node

Open Logic Bricks

Build the chain

Choose by submenu

Animation

Animation

Options

Typical uses

Example chain

Related bricks

Animation State

Options

Typical uses

Example chain

Related bricks

Sprite Frames

Options

Typical uses

Example chain

Related bricks

Audio

3D Audio

Options

Typical uses

Example chain

Related bricks

2D Audio

Options

Typical uses

Example chain

Related bricks

Music

Options

Typical uses

Example chain

Related bricks

Camera

3rd Person Camera

Options

Typical uses

Example chain

Related bricks

Camera Zoom

Options

Typical uses

Example chain

Related bricks

Set Camera

Options

Typical uses

Example chain

Related bricks

Smooth Follow Camera

Options

Typical uses

Example chain

Related bricks

Split Screen

Options

Typical uses

Example chain

Related bricks

Environment

Environment

Options

Typical uses

Example chain

Related bricks

Light

Options

Typical uses

Example chain

Related bricks

Game

Game

Options

Typical uses
